Reference Number: 017710

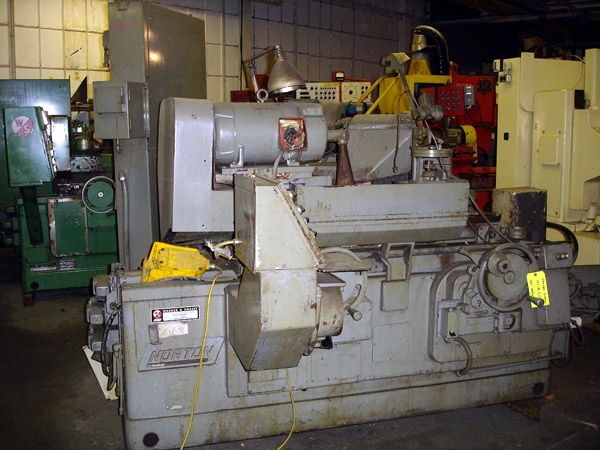

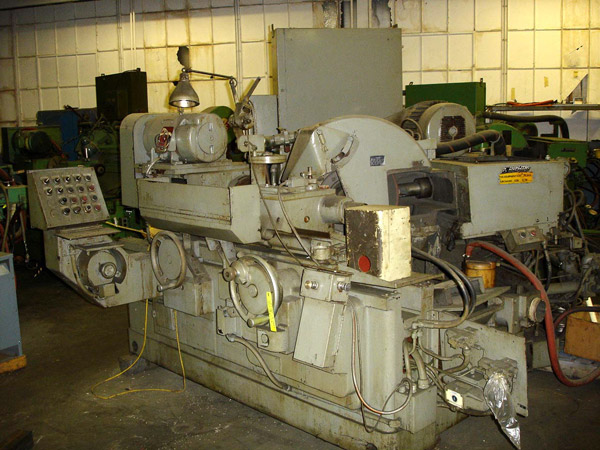

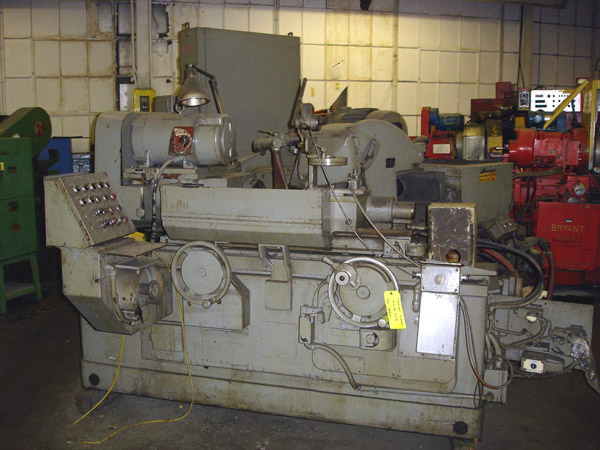

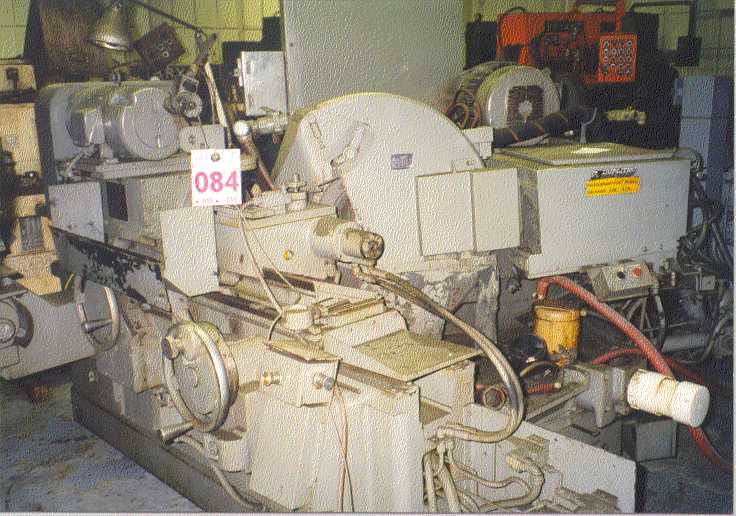

10" X 18" WARNER & SWASEY NORTONPrice: On Request
30 DEGREE ANGLE HEAD PLAIN CYLINDRICAL GRINDER
MODEL: CV5 S/N: 29021 NEW: 1974
ACTUAL SWING OVER TABLE ........................... 10"
DISTANCE BETWEEN CENTERS .......................... 18"

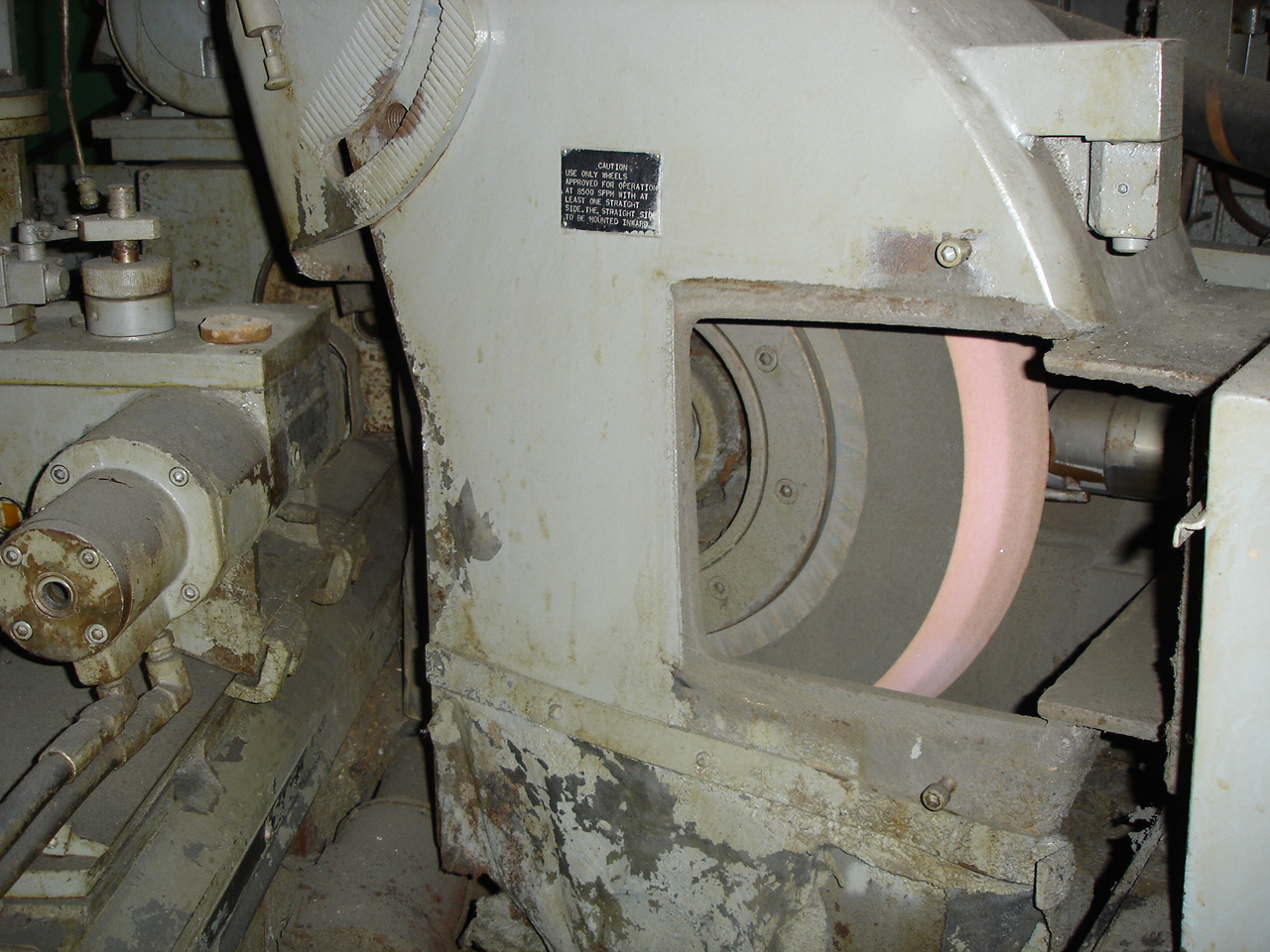

WHEEL MOUNT TO ACCEPT ........ 30" X 12" BORE X 8" WIDE

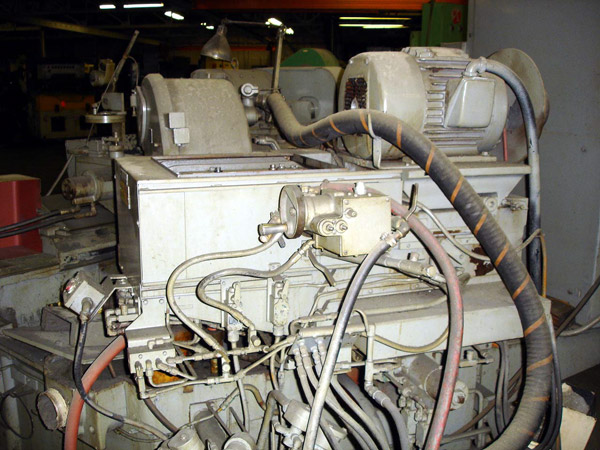

HYDRAULIC PLUNGE INFEED

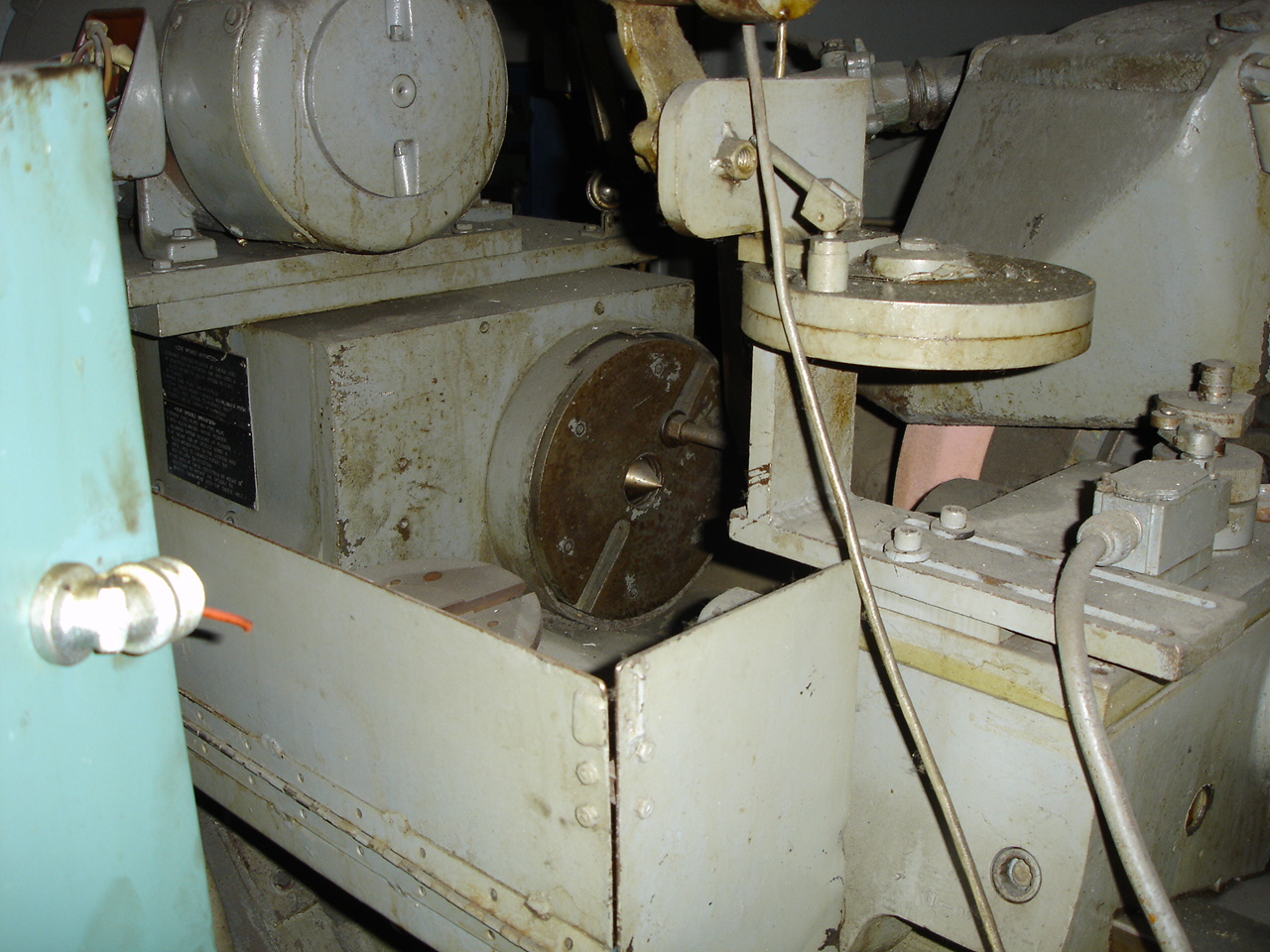

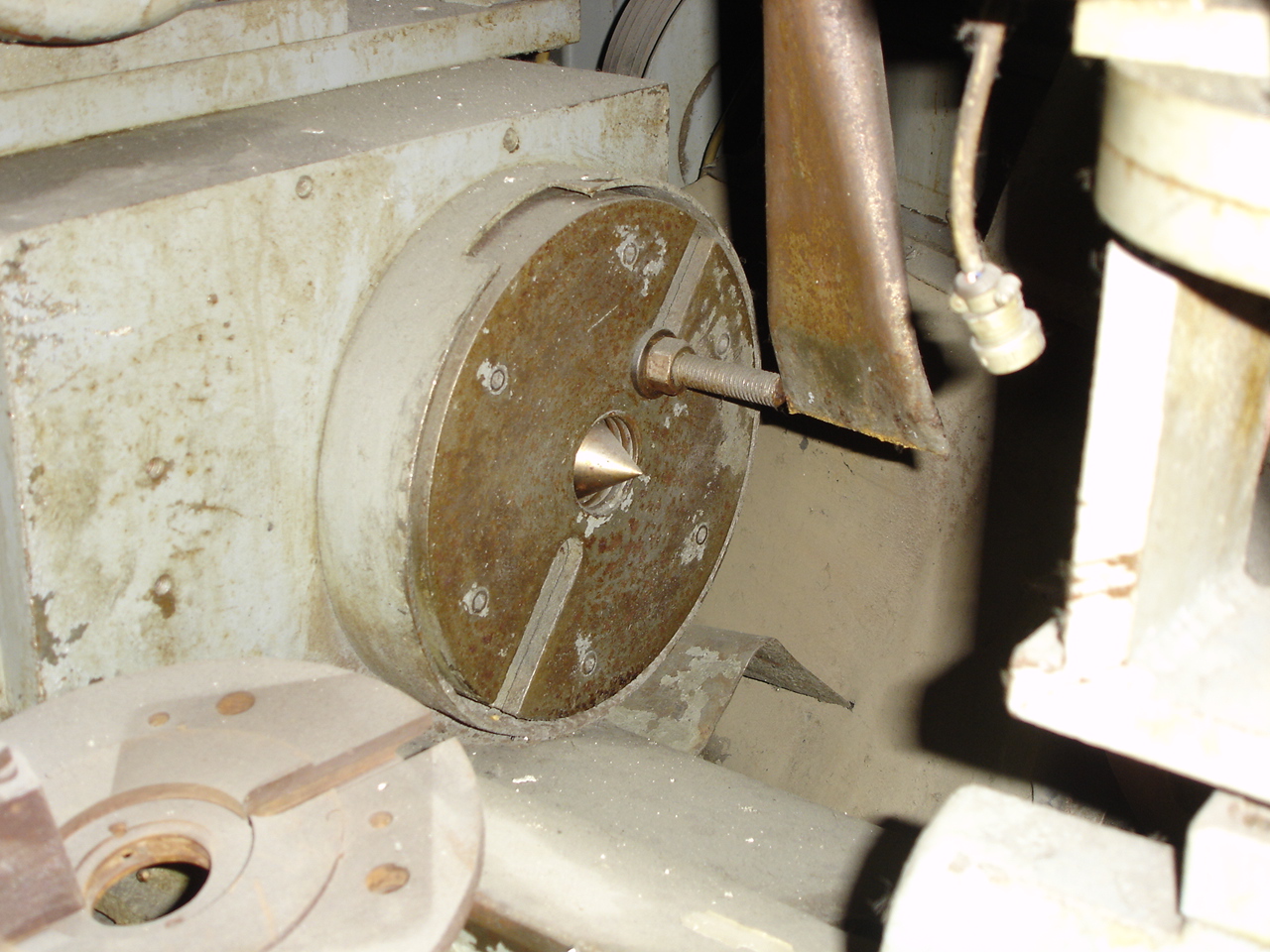

LIVE AND DEAD COMBINATION WORKHEAD

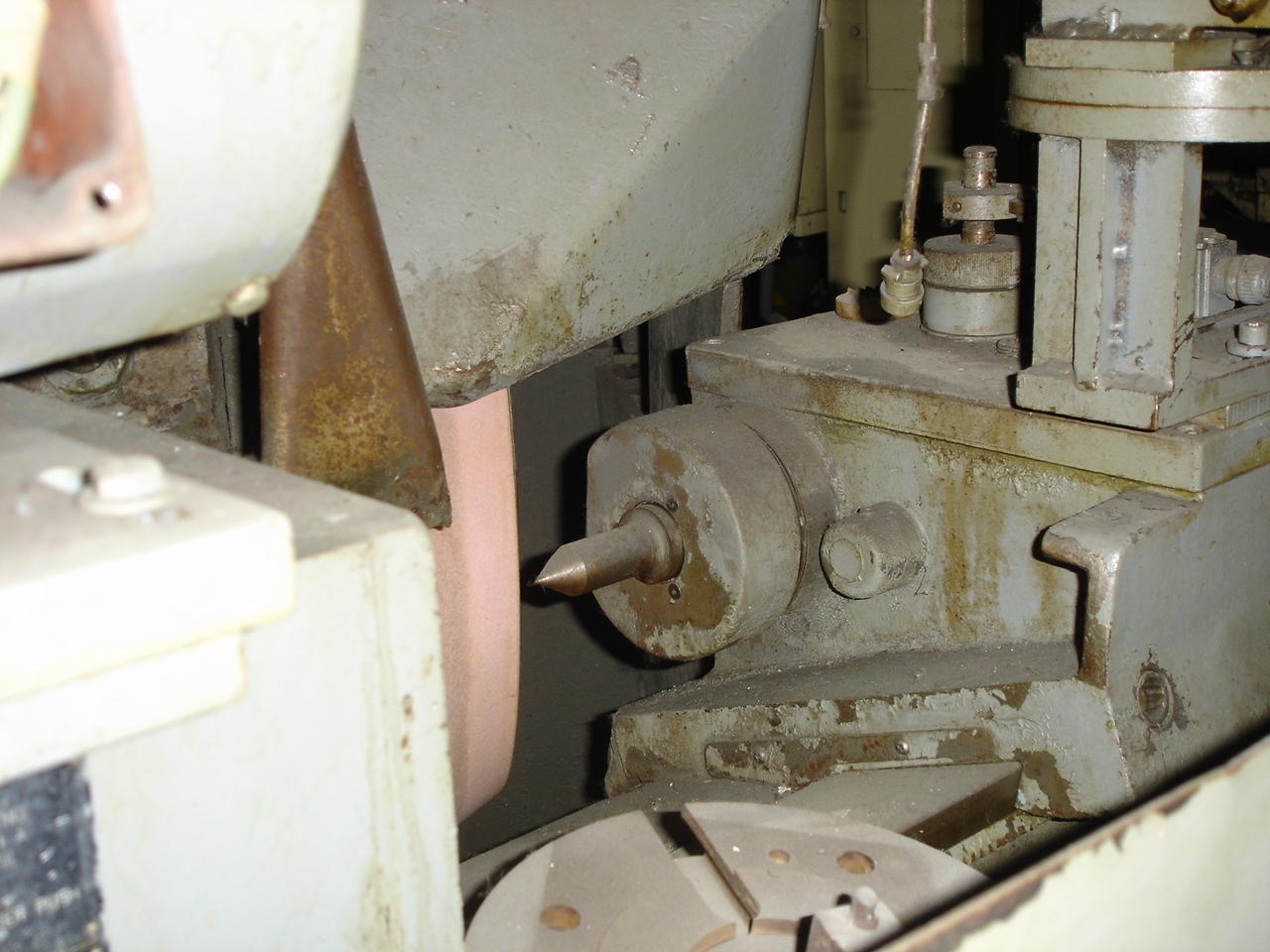

HYDRAULIC OPERATED TAILSTOCK
20 HP 480/3/50, 1445 RPM WHEEL HEAD
1 HP 400/3/50, MOTORIZED HEADSTOCK D.C. DRIVE
DUPLITRU BEHIND THE WHEEL AUTO DRESSER 8" TRAVEL
AUTO PLUNGE
EQUIPPED WITH:
AUTOMATIC BEHIND THE WHEEL MOTORIZED ROTARY FORM
DRESSER CAPABLE OF DRESSING 8" WIDE WHEEL

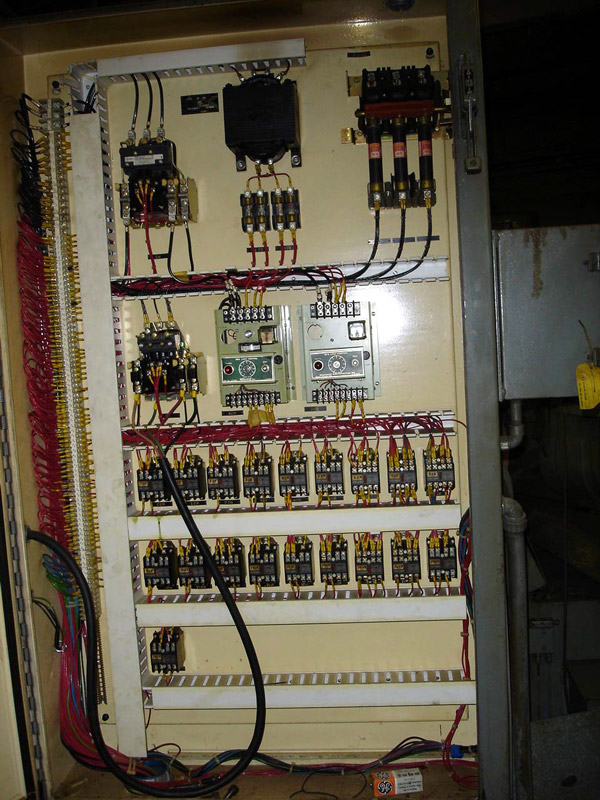

MOTOR AND CONTROLS
PUSH BUTTON CONTROLS
SPARK OUT WITH TIMER
D.C. VARIABLE DRIVE ON WORKHEAD
LOAD METER
HYDRAULIC FOOT OPERATED TAILSTOCK
14 JARNO WORKHEAD
PLUNGE
SET UP FOR CENTRAL COOLANT (EXTERIOR TANK OPTIONAL)
MICROFLEX TIMER
** INSPECT UNDER POWER IN WARREN, MI **
** VERY GOOD HEAVY MACHINE **
PRICE UPON REQUEST
