Reference Number: 110048
Price: $7,950

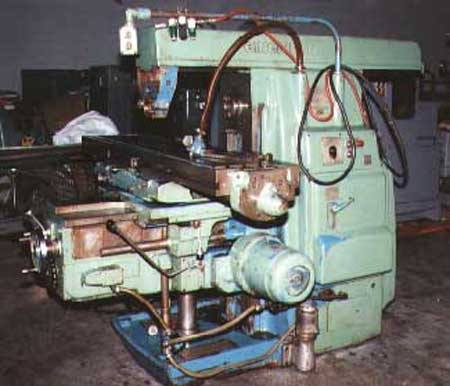

CINCINNATI HORIZONTAL/UNIVERSAL MILL
MODEL: 310-16 S/N: 11A3U5SE-7 NEW: 1967
WORKING SURFACE OF TABLE ............ 68-1/2" X 16-1/4"
LONGITUDINAL TRAVEL OF TABLE ...................... 34"
CROSS TRAVEL OF TABLE ............................ 16"
VERTICAL TRAVEL OF KNEE ........................... 19"
DISTANCE SPINDLE TO TABLE .......... 0" MIN. / 19" MAX.
SPINDLE TAPER ..................................... #50
SPINDLE SPEED RANGE (24) ................ 16 - 1600 RPM
TABLE FEEDS LONGITUDINAL & CROSS (16) .... 1/2 - 60 IPM
VERTICAL KNEE FEEDS .............. 1/2 OF LONG. & CROSS
POWER RAPID TRAVERSE FOR LONG & CROSS ......... 150 IPM
POWER RAPID TRAVERSE FOR VERTICAL KNEE ......... 75 IPM
APPROXIMATE WEIGHT ......................... 10,800 LBS
EQUIPPED WITH:
ARBOR SUPPORT
ARBORS
UNIVERSAL TABLE
10 HP DRIVE MOTOR
* * EXCELLENT CONDITION * *
*INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE*
