Reference Number: 111721
Price: $14,500

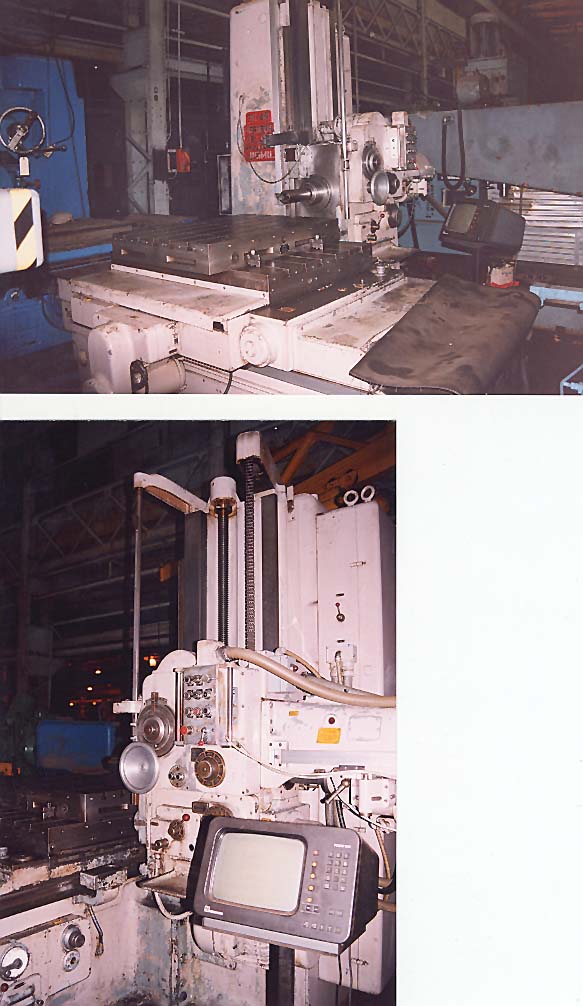

3" DEVLIEG "H" SERIES JIG MILL
MODEL: 3H48 S/N: 9-10452 NEW: 1964
SPECIFICATIONS:
SPINDLE BAR DIAMETER ................ 3"
SPINDLE TAPER ....................... # 40
TABLE SIZE ... L x W ................ 48" x 35"
HORIZONTAL TRAVEL, X-AXIS ........... 48"
VERTICAL TRAVEL, Y-AXIS ............. 48"
SPINDLE BAR TRAVEL, Z-AXIS .......... 16"
TABLE RETRACTION, W-AXIS ............ 16"
SPINDLE SPEEDS (16) ................. 25 - 1200 RPM
SPINDLE DRIVE ....................... 7.5 HP
FEED & RAPID TRAVERSE (2 SPEED) ..... 3-3/4 - 1-1/4 HP
BAR RAPID TRAVERSE .................. 3/4 HP
MILLING FEEDS PER MINUTE, 16......... .5 - 36"
NO. OF BAR FEEDS .................... 8
RAPID TRAVERSE RATE PER MINUTE ...... 95"
RANGE OF FEEDS PER REV. ............. 50" - 150"
SPINDLE BAR FEED RATES, 16 .......... .002 - .024"
HEIGHT, FLOOR TO TABLE TOP .......... 41-3/8"
HEIGHT, OVERALL ..................... 8'6"
LENGTH x WIDTH ...................... 13'1"x11'7"
NET WEIGHT ......................... 25,200 LBS.
EQUIPPED WITH:
POWER DRAW BAR
HEIDENHAIN DIGITAL READ OUT
* * VERY GOOD CONDITION * *
