Reference Number: 111785

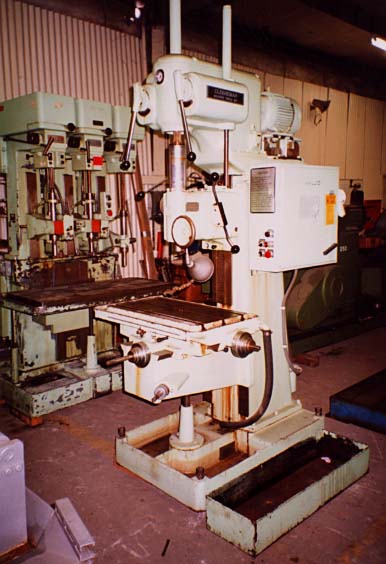

CLEERMAN HEAD SINGLE SPINDLE UPRIGHT DRILL PRESS
S/N: 65232
SPECIFICATIONS:
DIA. OF SPINDLE ......................... 3-3/4"
SPINDLE TAPER ........................... #4 MORSE
TRAVEL OF SPINDLE ....................... 10"
SPINDLE SPEEDS .......................... 50 - 1000 RPM
FEEDS ................................... .005 TO .045IPR
T-SLOTTED TABLE DIMENSIONS .............. 16" x 29-1/2"
ADJUSTABLE UP & DOWN MOVEMENT OF TABLE .. 12"
FACE OF COLUMN TO CENTER OF SPINDLE ..... 14"
MAX. DISTANCE SPINDLE TO TABLE .......... 24"
MAIN MOTOR .............................. 7.5 HP 460/3/60
EQUIPPED WITH:
PUSHBUTTON CONTROLS
COOLANT
POWERFEED TO SPINDLE
Price: $6,950
