Reference Number: 111786

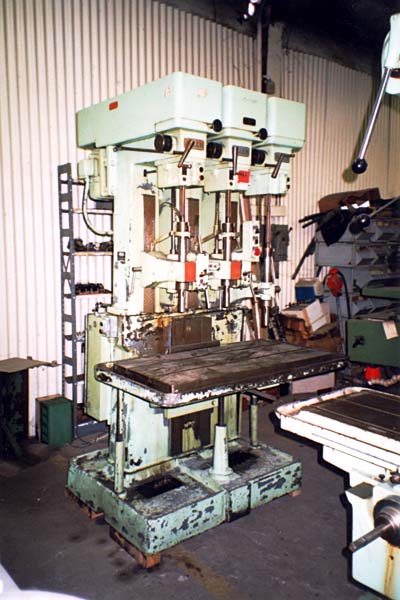

CHARLES ALLEN MODEL MAV SERIES 3 SPINDLE DRILLPrice: $6,500
S/N: 33758, NEW: 1971
SPECIFICATIONS:
TABLE SIZE...................... 21-1/4" X 46-1/4" T SLOTTED
SWING CAPACITY.................. 24"
FACE OF COLUMN TO CENTER OF SPD. 12"
TAPER IN SPINDLE................ #3 MT
SPINDLE CENTERLINE TO CENTERLINE
OF ALL SPINDLES................ 12-/4"
SPINDLE TRAVELS................. 6"
SPINDLE SPEEDS.................. VARIABLE 200 TO 2400 RPM
MAIN MOTOR ON EACH HEAD......... 2 HP
TRAVEL OF EACH HEAD ON DOVETAIL
WAYS........................... 17"
TRAVEL OF TABLE ON WAYS......... 14"
EQUIPPED WITH:
-START/STOP CONTROL STATION
-LEFT HEAD HAS AUTO FEED
-CENTER HEAD: DRILL/TAP
-RIGHT HEAD: HAND OPERATED FEED
-COOLANT PUMP IN BASE
-ELECTRICAL CONTROLS
*MACHINE IS IN VERY CLEAN CONDITION*
