Reference Number: 113093
Price: $27,500

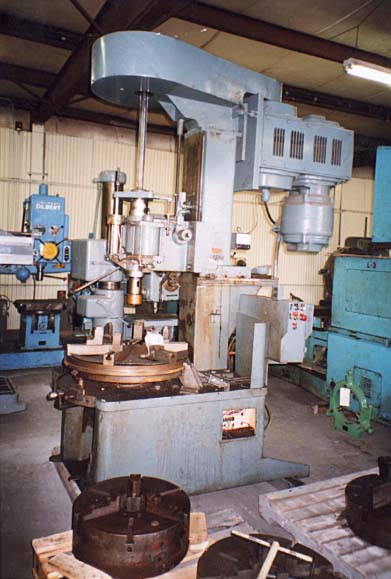

BABIN CIRCLE-MATIC AUTOMATIC INDEXING BOLT CIRCLE
DRILLING MACHINE
MODEL: 24 S/N: ADP-243 NEW: 1978
SPECIFICATIONS:
STANDARD BOLT CIRCLE DIA. CAP. - 4" TO 30"
STANDARD DIVISION OF EQUALLY
SPACED HOLES - 4, 5, 6, 8, 10, 12, 16,
20 & 24
MAX. DIA. OF WORKPIECE (I.D. CHUCKING) - 33"
MAX. O.D. CHUCKING CAP. W/STANDARD JAWS -26"
STANDARD MAIN MOTOR - 10 HP VARI. SPEED W/GEAR DRIVE & CNTRL
VAR. SPEEDS ON SPINDLE - 90 - 500 RPM, VARI. FEEDS TO SPNDL
SPINDLE TAPER - #5 MT
SPINDLE TRAVEL - 6"
MAX. DRILL SIZE IN CARBON STEEL - 2-1/8"
MAX. TABLE CAP W/SUPPORT RING - 1,500 LBS.
DIMENSIONS - 133" H x 50" W
WEIGHT - 5,600 LBS.
EQUIPPED WITH:
15' CUSHAMN 3-JAW AIR OPERATED CHUCK
SUPPORT RING WITH COVERS
TACHOMETER FOR SPINDLE SPEEDS
CENTERLINE OF CHUCK TO FRONT & REAR OF MACHINE 23" & 55"
MAIN DRIVE WITH CONTROLS
COOLANT PUMP
SPLASH GUARDS
