Reference Number: 113143

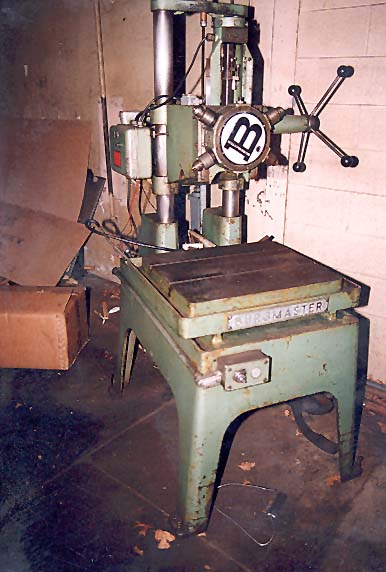

BURGMASTER 6-SPINDLE TURRET DRILL
MODEL: 1D S/N: 1D-3110 NEW: 1967
DRILL CAPACITY, MILD STEEL ....................... 1/2"
CAST IRON ........................ 5/8"
TAPPING CAPACITY, MILD STEEL .................. 1/2" NF
TURRET TRAVEL ...................................... 6"
TABLE SIZE .................................. 12" X 17"
THROAT DEPTH ................................... 8-1/2"
PRESELECTIVE SPINDLE SPEEDS (12) ....... 275 - 4010 RPM
MAXIMUM DISTANCE SPINDLE NOSE TO WORK TABLE,
HEAD UP AND CARRIAGE UP ......................... 22"
APPROXIMATE WEIGHT ............................ 750 LBS
EQUIPPED WITH:
PRESELECTIVE INDIVIDUAL DEPTH STOPS AND SPINDLE
SPEEDS
POWER INDEXING TURRET
(6) DRILL CHUCKS
1/2 - 1 HP 3/60/220-440 VOLT 1725-3450 RPM 2-SPEED
DRIVE MOTOR AND ELECTRICAL CONTROLS COUPLED TO
A TWO-STEP BELT DRIVE
CAST IRON FACTORY BASE
COOLANT
Price: $3,250
