Reference Number: 115370
Price: $6,500

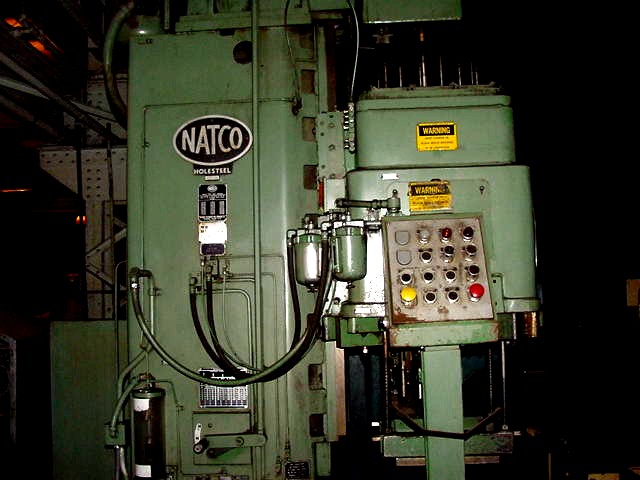

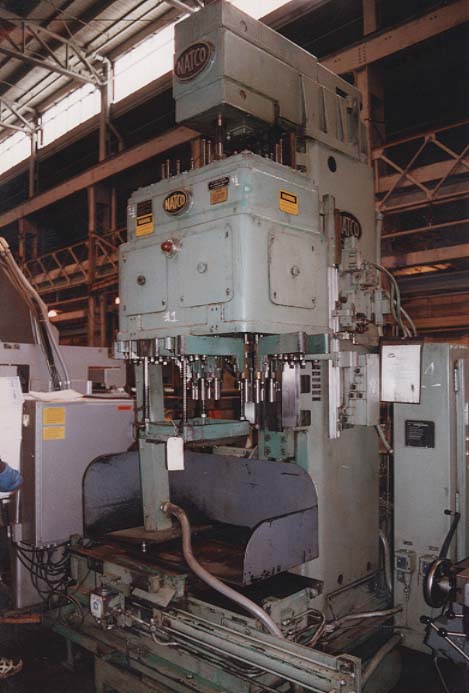

NATCO 24 SPINDLE MULTI-SPINDLE DRILLING MACHINE

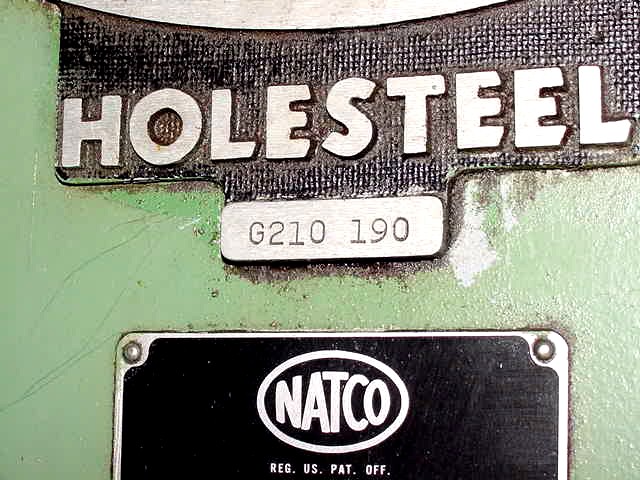

S/N: G210-190 MODEL: G210 YEAR: 1980
SPECIFICATIONS:
SIZE OF HEAD................................. 15" X 24"
BORED # OF SPINDLES................................. 24
DIAMETER OF UPPERS.................................. 1"
DRILLING CAPACITY:
CAST IRON WITH 24 SPINDLE................ .4375"
MILD SPEED WITH 24 SPINDLES.............. .3281"
FEED STROKE........................................ 18"
MAXIMUM FEEDING PRESSURE................... 10,000 LBS.
RANGE OF FEEDING............................. 1-29 IPM
RATE OF TRAVERSE.............. 145 FORWARD, 180 REVERSE
SPEED RANGE (36)...........................138-3041 RPM
APPROXIMATE FLOOR SPACE...................... 54" X 85"
APPROXIMATE WEIGHT.......................... 12,500 LBS
EQUIPPED WITH:
3 POSITION VICKERS SHUTTLE TABLE
10 HP HEAD DRIVE
3 HP HYDRAULIC MOTOR
DRILL, TAP AND SKIP CYCLES
PENDANT CONTROL
** INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE **
