Reference Number: 115519
Price: $7,500

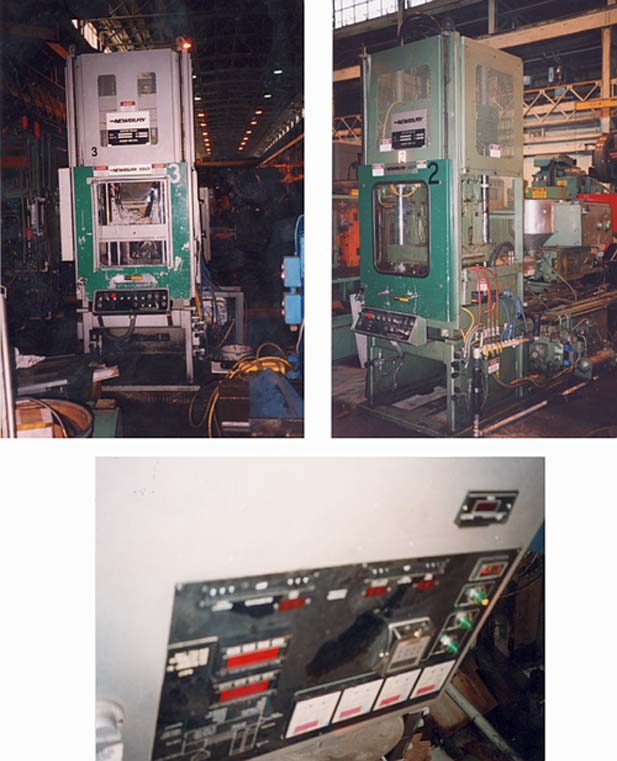

9 OZ., 150 TON NEWBURY VERTICAL INJECTION MOLDERS
MODEL: V9-150ARS STYLE: 4-POST NEW 1988
MOLD CLAMPING FORCE ....................... 150 TONS
PLATEN SIZE ............................... 24" X 24"
DISTANCE BETWEEN TIE BARS ................. 16" X 16"
MAXIMUM MOLD SPACE ........................ 15.88" X 24"
MAXIMUM CLAMPING STROKE ................... 12.1"
MINIMUM CLOSED DAYLIGHT ................... 8"
MAXIMUM CLOSED DAYLIGHT ................... 17"
MAXIMUM OPEN DAYLIGHT ..................... 29"
CENTER-LINE OF INJECTION .................. 4.5" - 9"
INJECTION STROKE .......................... 7"
SCREW DIAMETER ............................ 1.75"
DIMENSIONS: 9.5'L X 4.5"W X 11.5'H
ESTIMATED SHIPPING WT.: 15,500 LBS.
EQUIPPED WITH:
- 4-POST DESIGN
- NEW CLAMP INSTALLED 1999
- HYDRAULIC KNOCKOUT
- 9 OZ. INJECTION UNIT
- NEWBURY ALUMINUM HOPPER
S/N 7-7913-150AS-88
