Reference Number: 116310

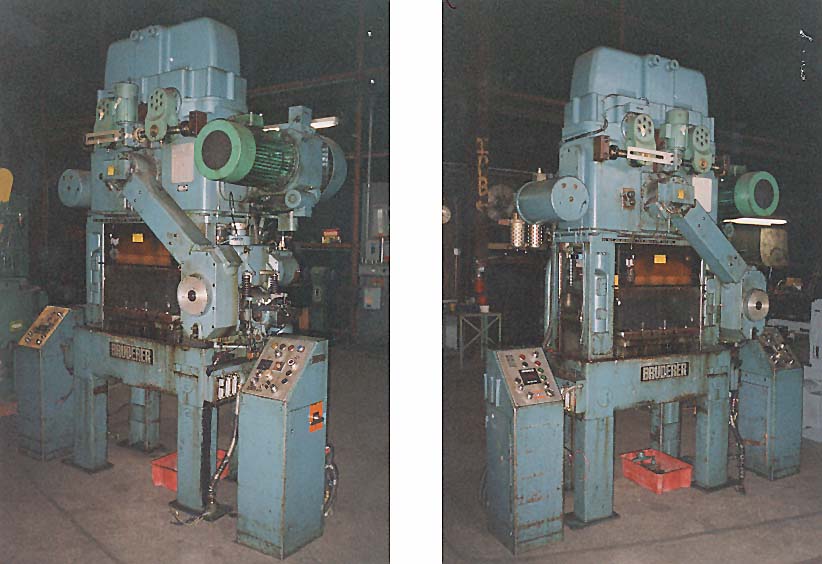

BRUDERER PRECISION HGIH SPEED PRESS
MODEL #BSTA 40/45 NEW 1973 S/N 2590
(4) PILLAR-TYPE
RATED CAPACITY ............................ 45 TONS
STROKE ..............(ADJUSTABLE).......... .50 - 2.25"
RAM ADJUSTMENT ......(POWER)............... 2.4"
SHUT HEIGHT .........(S.D.A.U.)............ 17.8"
BED AREA ............(LR X FB)............. 26.1" X 21.5"
MAXIMUM STOCK STRIP WIDTH ................. 7.9"
STROKES PER MINUTE ........................ 70 - 1200
AIR CLUTCH AND BRAKE WITH SELECTOR CONTROLS
OVER DRIVEN DESIGN
CYLINDRICAL RAM (POST) GUIDES
EQUIPPED WITH:
- BRUDERER PRECISION SINGLE ROLL FEED
- MAIN DRIVE MOTOR
- ELECTRICAL CONTROLS
- HYDROSTATIC VARI-SPEED DRIVE
- BOLSTER PLATE 6.5" THICK
- AUTOMATIC RECIRCULATING LUBRICATION SYSTEM
- CONTROL CONSOLE
APPROX. OVERALL DIMENSIONS: 85"LR X 66"FB X 118"H
APPROX. WEIGHT: 13,000#
Price: $29,500
