Reference Number: 116351

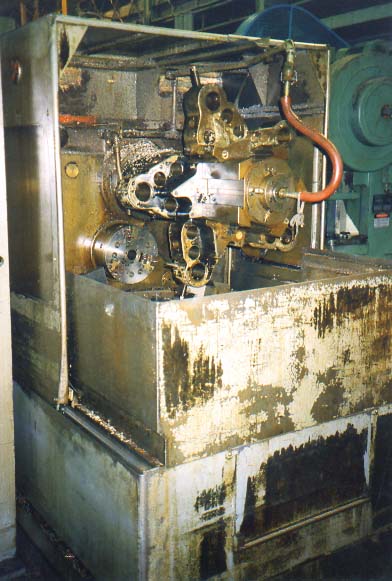

2AC WARNER & SWASEY SINGLE SPINDLE AUTOMATIC CHUCKERPrice: $2,250
MODEL: 2AC/M-3200 S/N: 2005103 NEW: 1964
SWING OVER CROSS SLIDE .............................. 12"
MAXIMUM DISTANCE END OF SPINDLE TO TURNING HEAD..30-1/16"
HOLE IN SPINDLE .................................. 3-3/8"
CHUCK AIR OPERATED .................................. 12"
PENTAGON TURRET:
CENTERLINE OF SPINDLE TO TURRET FACE ...... 7-1/4"
MAXIMUM STROKE ............................... 11"
MAXIMUM WORKING STROKE ........................ 9"
LENGTH OF TOOLHOLDER ADJ. ............... 13-1/4"
CROSS SLIDES:
WIDTH ..................................... 9-1/4"
MAXIMUM TRAVEL ........................... 5-1/16"
TURRET FEEDS (6) ......................... .0019 - .124
CROSS SLIDE FEED AT SAME RATE AS TURRET
SPINDLE SPEED RANGE ...................... 38 TO 1058 RPM
THREADING RANGE .............................. 7 - 32 TPI
MOTOR SIZE ........................................ 15 HP
FLOOR SPACE .................................. 87" X 139"
APPROXIMATE WEIGHT ......................... 15,000 LBS.
EQUIPPED WITH:
10" CHUCK
