Reference Number: 116682
Price: $1,250

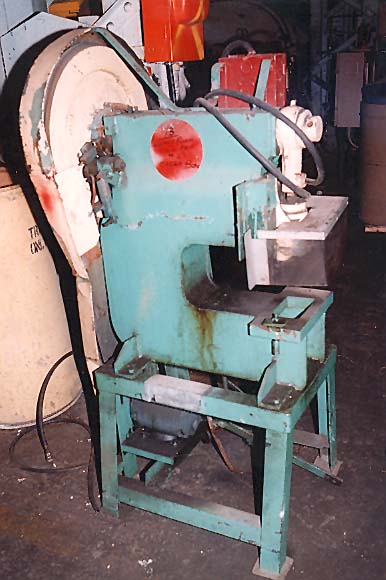

10 TON WHITNEY-JENSEN DEEP THROAT PUNCH PRESS
MODEL: 129 S/N 129203247
RATED CAPACITY ........................... 10 TONS
LENGTH OF STROKE ......................... 1-1/4"
DEPTH OF THROAT .......................... 12"
HEIGHT OF THROAT ......................... 9"
STROKES PER MINUTE ....................... 175
ADJUSTMENT OF RAM ........................ 1-3/4"
DIE SPACE ...........(S.D.A.U.)........... 7"
DIAMETER OF PUNCH SHANK HOLE IN RAM ...... 1-9/16"
DEPTH OF PUNCH SHANK HOLE IN RAM ......... 2"
BOLSTER PLATE DIMENSIONS ................. 1" X 12" X 18"
SLUG HOLE CLEARANCE ................ 4" RD OR 3-1/2" X 6"
BOLSTER PLATE HOLES - CENTER TO CENTER ... 10-1/2"
1 HP, 3/60/220/440 VOLT, 1200 RPM
2 V-BELTS
OVERALL DIMENTSIONS: 26" X 35" X 69"H
WEIGHT: 1040 LBS.
