Reference Number: 117349

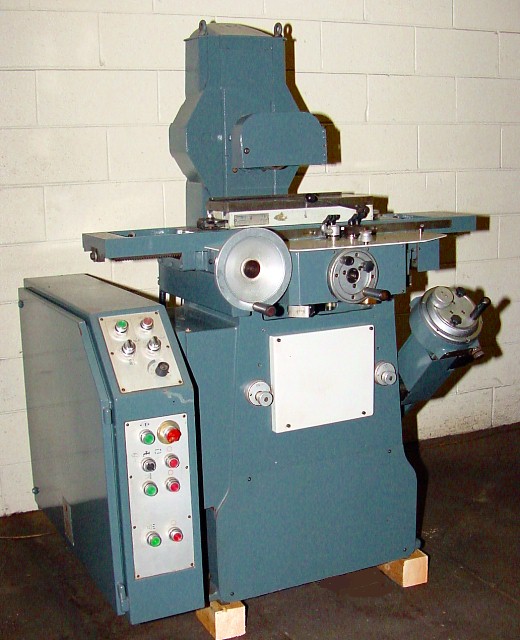

6" X 18" JONES & SHIPMAN HYDRAULIC SURFACE GRINDER
 W/AUTOMATIC INCREMENTAL DOWNFEED

  MODEL: 540AR   S/N: BO-13638   NEW: 1988


  WIDTH & LENGTH GROUND ..................... 6" X 18"
 LONGITUDINAL TABLE TRAVEL ....................... 19"
 CROSS TRAVEL ................................ 6- 3/4"
 LONGITUDINAL TABLE SPEED .............. 5' TO 60' FPM
 AUTOMATIC CROSS FEED INCREMENT ....... 0.007" TO .07"
 FINE CROSS FEED KNOB GRADUATED IN ........... 0.0001"
 VERTICAL FEED ADJ. IN INCREMENTS OF ........ 0.00005"
 AUTOMATIC DOWNFEED, MIN. TO MAX. .. 0.00005" TO .0003"
 MAX. VERTICAL MOVEMENT OF WHEELHEAD ............. 11"
 STANDARD GRINDING WHEEL .......... 7" X 1/2" X 1- 1/4"
 SPINDLE MOTOR ................................. 2 H.P
 HYDRAULIC MOTOR ............................... 1 H.P

 APPROX. MACHINE WEIGHT .................... 2,000 LBS
 APPROX. DIMENSIONS ................... 4' X 3' X 65"H


  EQUIPPED WITH:
 AUTOMATIC INCREMENTAL DOWNFEED
 POWER RAPID WHEELHEAD POSITIONING
 HYDRAULIC LONGITUDINAL & CROSS FEEDS
 AUTOMATIC CROSSFEED REVERSAL
 SELF-CONTAINED HYDRAULIC SYSTEM
 6" X 18" WALKER FINE-DIVISION PERMANENT MAGNETIC CHUCK
 WHEELHEAD SLIDE TRAVERSES ON BALL & ROLLER BEARINGS
 RUNNING ON PRECISION GROUND BAR GUIDES
 AUTOMATIC LUBRICATION TO TABLE & SADDLE WAYS
 FINE FEED KNOBS FOR CROSS & VERTICAL FEEDS (.0001")
 2 H.P. SUPER-PRECISION SPINDLE DRIVE

  ** INSPECT UNDER POWER IN OUR HARRISON, N.J. FACILITY **

 ** EXCELLENT CONDITION **
