Reference Number: 118597

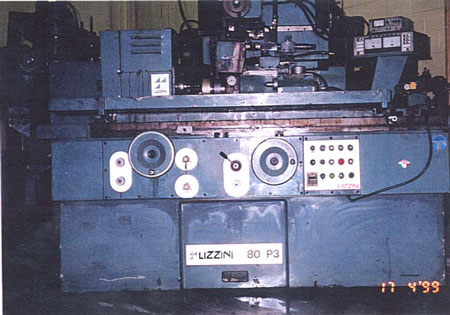

12" X 32" LIZZINII CYLINDRICAL GRINDERPrice: On Request
w/POWER AUTOMATIC "BEHIND-THE-WHEEL" DRESSER
MODEL: RUL 80-P3 S/N: 35/1 NEW: 1980
MAXIMUM DISTANCE BETWEEN CENTERS .................. 32"
MAXIMUM SWING OVER TABLE........................... 12"
TABLE TRAVERSE SPEEDS, INFINITELY VARIABLE .. UP TO 240"
MAXIMUM LONGITUDINAL STROKE ...................... 34.8"
MAXIMUM SWIVEL OF TABLE.................... +/- 8 DEGREE
WORKHEAD:
SPEED RANGE (8) ........................... 50 - 500 RPM
CENTER TAPER ..................................... #4 MT
SWIVEL .................................. 0 - 90 DEGREES
CENTER TAPER...................................... #4 MT
WHEELHEAD:
RAPID ADVANCE STROKE ............................... 1.8"
MANUAL INFEED PER HANDWHEEL REVOLUTION ............ 0.02"
AUTO INFEED ............................. 0.0001" - .001"
AUTO PLUNGE INFEED ........................ 0.01" - 0.24"
HAND LEVER COMPENSATION ON DIAMETER.............. 0.0001"
STANDARD WHEEL SIZE ....... 20" O.D. X 4" WIDE X 8" HOLE
WHEEL SPEED .................................. 1,150 RPM
WHEELHEAD SWIVELLING CAPACITY ............... 45 DEGREES
APPROXIMATE WEIGHT ............................ 8600 LBS
EQUIPPED WITH:
POWER AUTOMATIC "BEHIND-THE-WHEEL" DRESSER
HYDRAULIC TABLE TRAVERSE
AUTOMATIC INFEED @ TABLE REVERSAL
AUTOMATIC PLUNGE INFEED
HYDRAULICALLY ACTUATED RAPID WHEELHEAD ADVANCE &
RETRACTION
SPARKOUT TIMER
HYDRAULIC TAILSTOCK
AUTOMATIC LUBRICATION TO TABLE AND WHEELHEAD WAYS
EXTERNAL COOLANT PUMP AND TANK
16 H.P. 3/60/230-460 VOLT WHEELHEAD DRIVE MOTOR
AND ELECTRICAL CONTROLS
WIRED PRESENTLY FOR 3/60/440 VOLT OPERATION
** INSPECT UNDER POWER IN OUR HARRISON, NJ FACILITY **
** ORIGINAL PAINT- VERY GOOD CONDITION **
