Reference Number: 119670
Price: $7,950

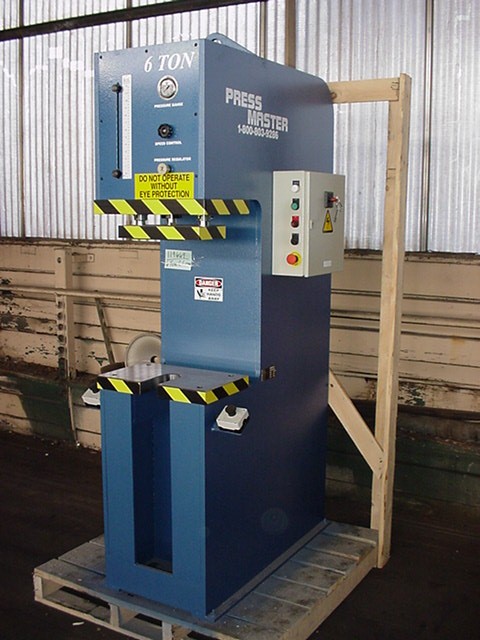

6 TON PRESSMASTER C-FRAME HYDRAULIC PRESS
MODEL #CFP-6T
NEW - IN STOCK FOR IMMEDIATE DELIVERY
TONS OF FORCE ......(MAX).................... 6 TONS
RAM SPEED (IPM).....(APPROACH/SPEED)......... 250/88
TABLE ..............(LR X FB)................ 19" X 12"
U-SLOT WIDTH ................................ 3"
DAYLIGHT .................................... 20"
STROKE ...................................... 12"
THROAT ...................................... 10"
FLOOR TO TABLE .....(FRONT TO BACK).......... 42"
HEIGHT (OVERALL)............................. 86"
WIDTH ....................................... 21.5"
CLEARANCE ................................... 7"
UPPER PLATEN .......(LR X FB)................ 14" X 7"
MOTOR HP @ 1760 RPM ......................... 5 HP
208-230/460/575 VOLTS, 3 PH, 60 CYCLE
STANDARD FEATURES:
- PRESSURE GAUGE
- PRESSURE REGULATOR
- DISTANCE REVERSAL SWITCH
- RAM TRAVEL IS GUIDED BY PRECISION-GROUND GUIDE RODS
- ADJUSTABLE STROKE CONTROL
- JOG MODE USED FOR SIMPLIFYING SETUPS
- DUAL ELECTRIC PALM BUTTONS FOR OPERATOR SAFETY
- PROGRAMMABLE CONTROL SYSTEM (PCS)
- LOW SPEED TEFC BALDOR ELECTRIC MOTOR
- FIVE YEAR WARRANTY ON ALL MECHANICAL COMPONENTS
- ONE YEAR PARTS AND LABOR GUARANTY
- MFG. IN NORTH AMERICAN
