Reference Number: 120095

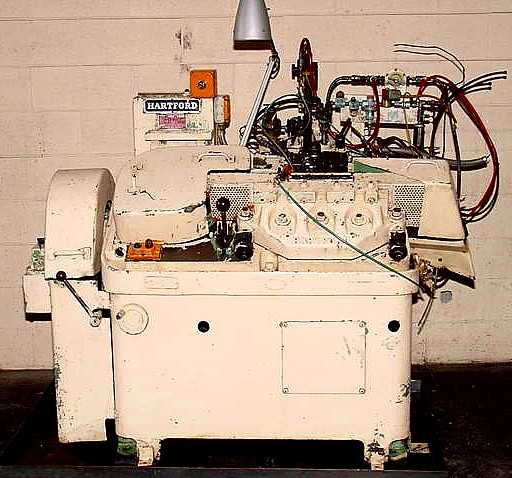

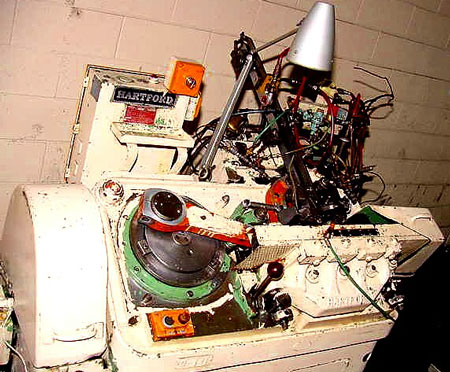

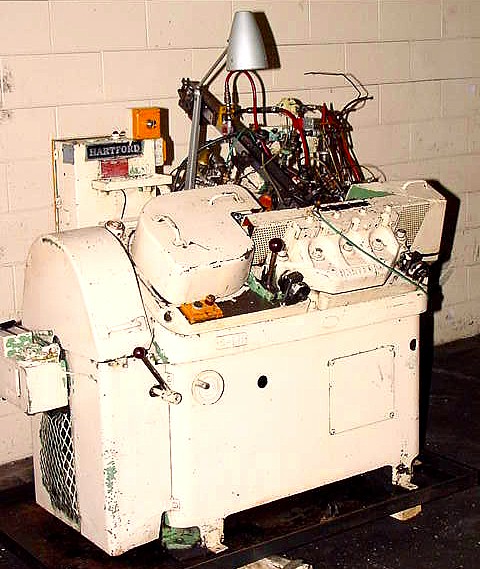

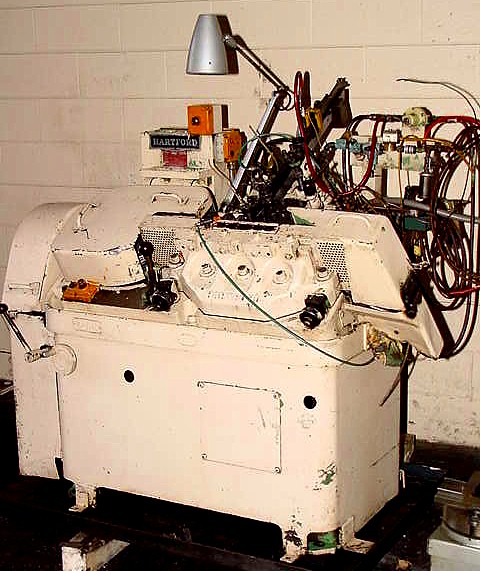

        HARTFORD HIGH SPEED FLAT DIE THREAD ROLLER

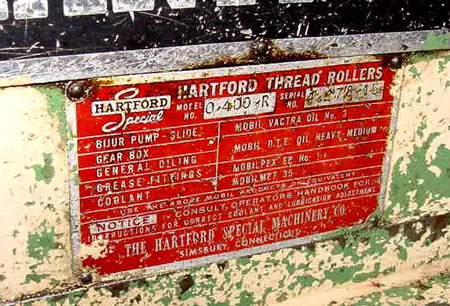

      MODEL: 0-400R    S/N: 4-278-15     NEW: 1964

 SCREW DIA. CAP. ........ #2 (.086) THRU #10 (.190)
 THREAD LENGTH CAP. ..... 1/8" UP TO 2-1/2"
 DIE POCKET DEPTH ....... 3-1/8"
 BLANK LENGTH ........... UP TO 3"
 HOPPER CAPACITY ........ 750 CUBIC INCHES, 100 POUNDS
 STARTER FINGERS SUPPLIED  COMPLETE SET #2 THRU #10
 COOLANT PUMP ........... 1/10 HP, 3600 RPM, 330/440-3.60
 MAIN DRIVE MOTOR ....... 5 HP, 1800 RPM, 220/440-3.60
 HOPPER DRIVE MOTOR ..... 1/4 HP, 1800 RPM, 220/440-3.60
 FLOOR SPACE REQUIRED ... 4' x 6'
 NET WEIGHT ............. APPROXIMATELY 2,900 POUNDS

 FEATURES:
 PRODUCTION RATE - INFINITELY ADJUSTABLE FROM 135 TO 400
   PIECES PER MINUTE
 ADJUSTABLE FEED RAIL HEIGHT - COMPLETE ASSEMBLY, INCLUDING
   HOPPER, MOVES UP, DOWN FOR VERTICAL ADJUSTMENT OF RAILS.
 EASY DIE MATCHING - SIMPLE ECCENTRIC CAM ADJUSTMENT CONTROLS
   RELATIVE POSITION OF MOVING DIE.
 AUTOMATIC SLIDE LUBRICATION - INDEPENDENT SYSTEM WITH OIL
   FLOW SIGHT GAGES, LOW OIL WARNING LIGHT AND AUTOMATIC
   SHUT OFF.
 TOOL-STEEL CLAD MAIN SLIDE - RIDES IN BRONZE LINED HOUSING
   TO GIVE LONG WEAR
 DIE SPACING - PRECISELY ADJUSTED THROUGH LONGER SPACING
   BETWEEN ADJUSTING SCREWS
 STRAIGHT LINE FEED RAILS - MINIMIZE WEAR, PROVIDE TROUBLE
   FREE FEEDING.
 FLAT DIES - FOR ECONOMY, LOW COST REPLACEMENT AND EASE OF
   SET UP
 HARTFORD AIR JET & VIBRATOR - FOR UNINTERRUPTED FEED
 ADJUSTABLE STARTER FINGERS - HEIGHT AND STROKE CAN BE VARIED
 WORKING PARTS VISIBLE - THROUGH INCLINED WORK TABLE, TILTED
   AT 30 DEG. ANGLE
 SEPARATE COOLANT SYSTEM - PERMITS USE OF PROPER COOLANT FOR
   THE JOB
 HOPPER SPEED - INFINITELY ADJUSTABLE FROM 4.5 TO 11.5 RPM
 HOPPER - VINYL LINING REDUCES NOISE, PREVENTS BURNISHING OF
   BLANKS
 HINGED LOADING CHUTE - PERMITS EASIER CLEANING OF HOPPER
   INTERIOR
 HANDWHEEL - FOR EASIER SET UP, GEARED AT 4:1 RATIO
