Reference Number: 120412
Price: $11,950

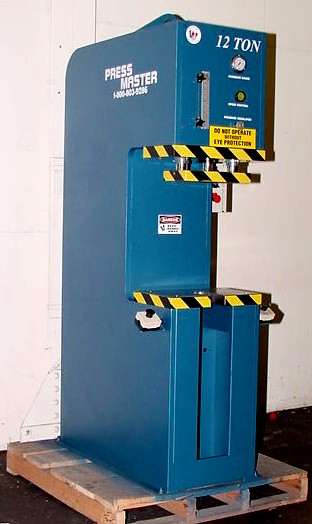

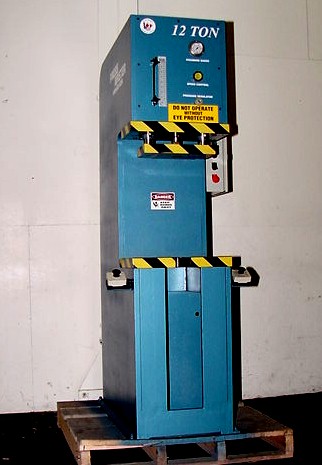

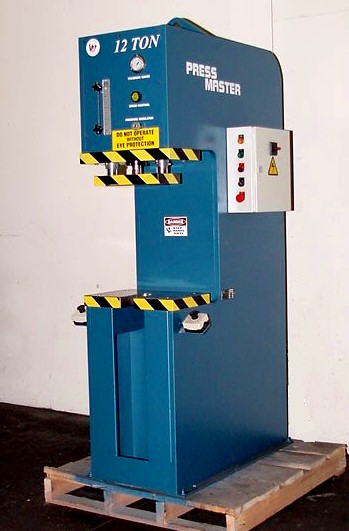

12 TON PRESSMASTER C-FRAME HYDRAULIC PRESS

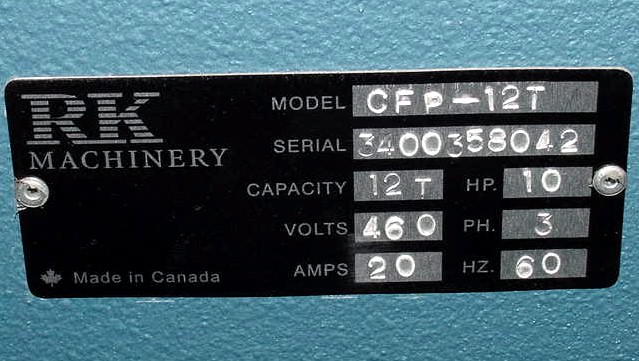

MODEL #CFP-12T
NEW - IN STOCK FOR IMMEDIATE DELIVERY
TONS OF FORCE ......(MAX).................... 12 TONS
MAXIMUM STROKE .....(ADJUSTABLE)............. 8"
APPROACH SPEED .............................. 100 IPM
RETURN SPEED ................................ 120 IPM

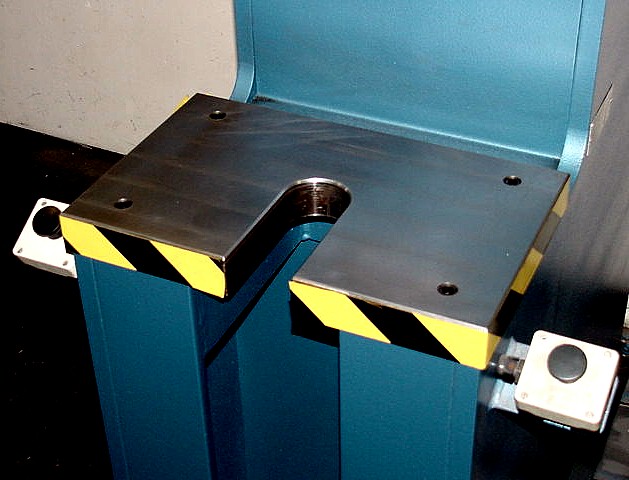

TABLE ..............(LR X FB)................ 19.5" X 12"
U-SLOT WIDTH ................................ 3"
DAYLIGHT .................................... 20"
THROAT ...................................... 10"
FLOOR TO TABLE .....(FRONT TO BACK).......... 34.5"
HEIGHT (OVERALL)............................. 86"
CLEARANCE ................................... 7"
WIDTH ....................................... 22"
UPPER PLATEN .......(LR X FB)................ 14" X 7"
MOTOR HP @ 1760 RPM ......................... 10 HP
460 VOLTS, 3 PH, 60 CYCLE
STANDARD FEATURES:

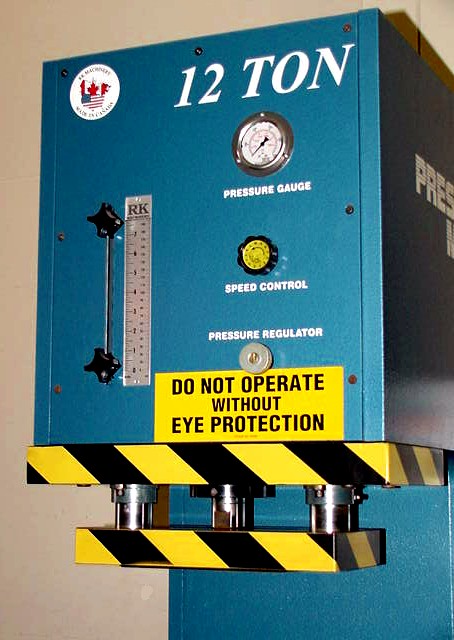

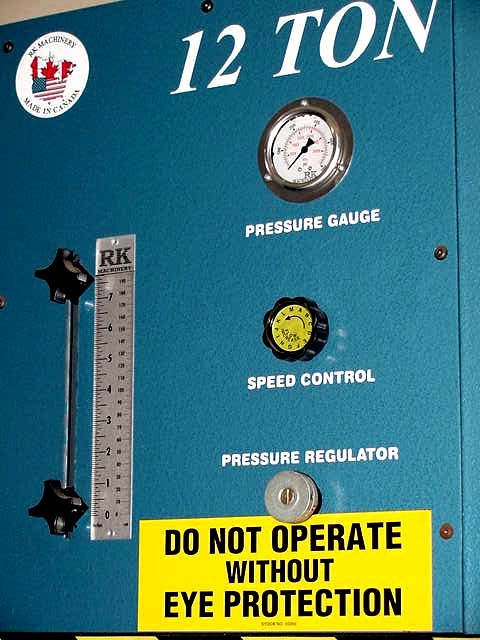

- PRESSURE GAUGE
- PRESSURE REGULATOR
- ADJUSTABLE STROKE CONTROL
- DISTANCE REVERSAL SWITCH

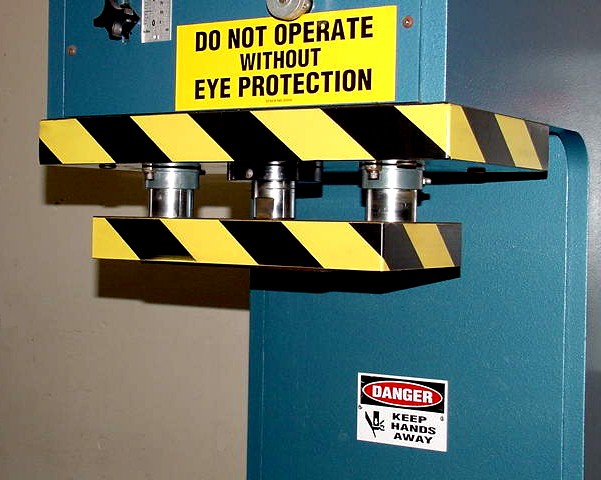

- RAM TRAVEL IS GUIDED BY PRECISION-GROUND GUIDE RODS

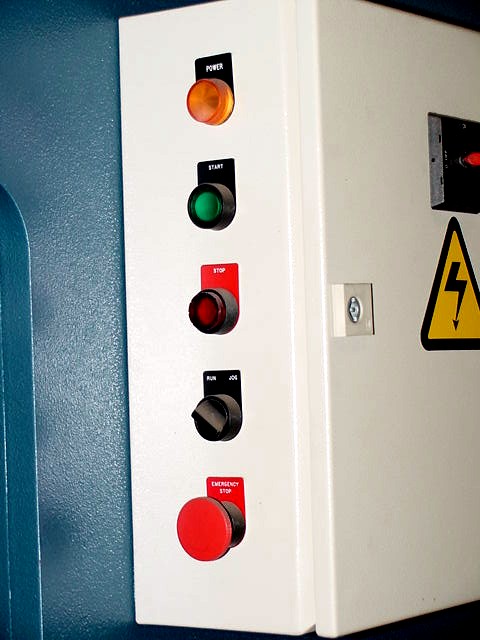

- JOG MODE USED FOR SIMPLIFYING SETUPS
- DUAL ELECTRIC PALM BUTTONS FOR OPERATOR SAFETY
- PROGRAMMABLE CONTROL SYSTEM (PCS)
- LOW SPEED TEFC BALDOR ELECTRIC MOTOR
- FIVE YEAR WARRANTY ON ALL MECHANICAL COMPONENTS
- ONE YEAR FULL PARTS AND LABOR GUARANTY
- MFG. IN NORTH AMERICAN
