Reference Number: 120525
Price: $34,500

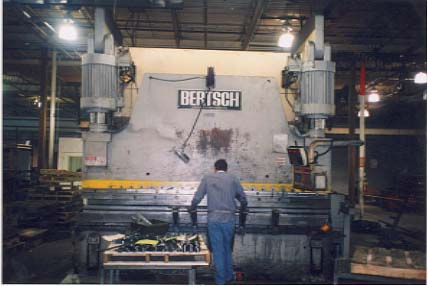

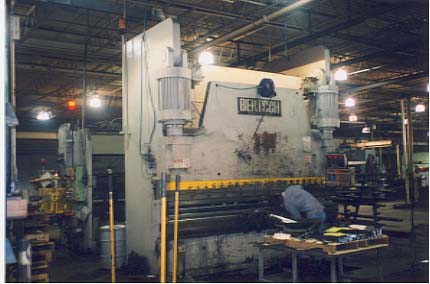

500 TON x 12' BERTSCH HYDRAULIC PRESSBRAKE TONNAGE ............................. 500 TONS
w/BERTSCH RAM CONTROL & AUTOMEC AUTOGAUGE CNC BACKGAUGE
MODEL: 500-12 NEW: 1984
BENDING CAPACITY (MILD STEEL)
............. 1/2" x 19', V-DIE OPENING 5
............. 5/16" x 14', V-DIE OPENING 6
............. 3/4" X 12'6"V-DIE OPENING 8
............. 1" x 8' V-DIE OPENING 10
TONNAGE CAPACITY - MED. ............. 300 TONS
LOW .............. 500 TONS
OVERALL LENGTH OF BED & RAM ......... 12'4"
DISTANCE BETWEEN HOUSINGS ........... 10'6"
RAM SPEED
STROKE .............................. 12"
OPEN HEIGHT ......................... 22"
CLOSED HEIGHT ....................... 10"
THROAT DEPTH ........................ 14"
PLATEN WIDTH ........................ 10"
APPROACH, HIGH ...................... 129
APPROACH, MEDIUM .................... 49
APPROACH, LOW ....................... 20
RETURN, LOW ......................... 52
RETURN, HIGH ........................ 165
PLATEN HEIGHT ABOVE FLOOR ........... 32"
BED PROJECTION BELOW FLOOR .......... 33"
MOTOR ............................... 50 HP
DIMENSIONS ............L x W x H .. 185" x 90" x 162"
WEIGHT .............................. 70,000 LBS.
