Reference Number: 120601

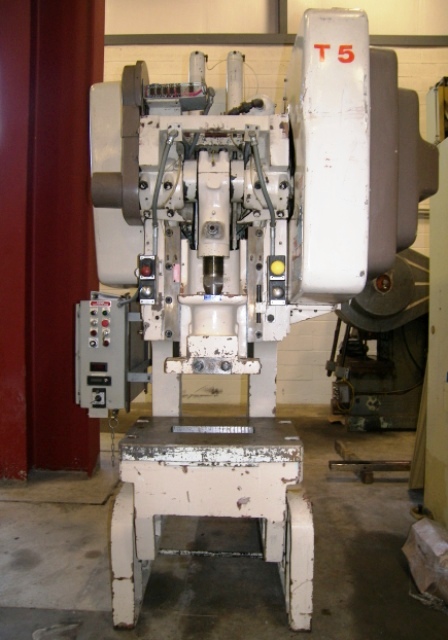

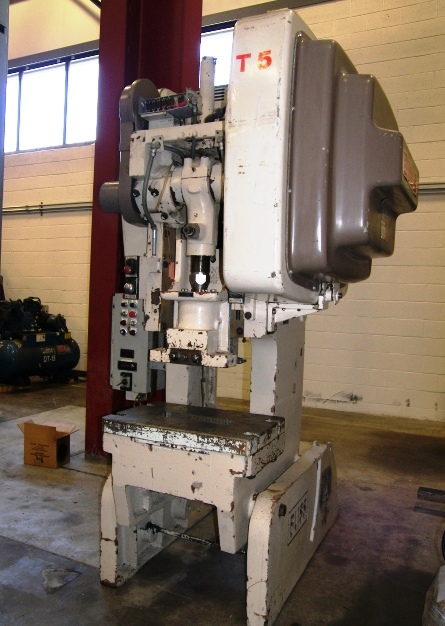

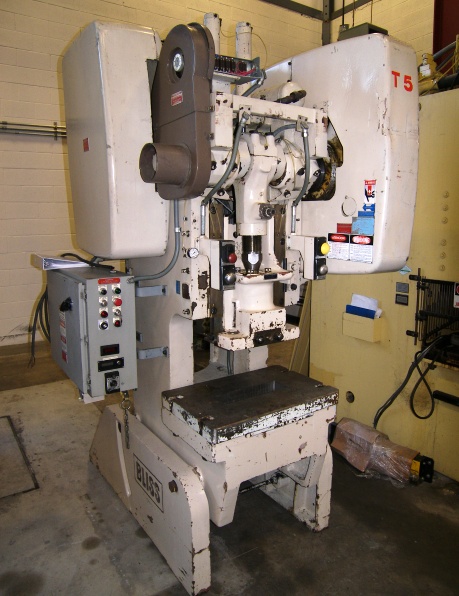

        60 TON BLISS BACK GEARED O.B.I. PRESS

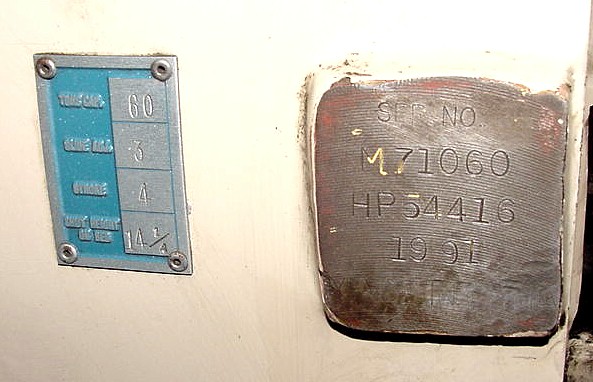

       MODEL #C-60 NEW 1991 S/N M71060/HP54416

 RATED CAPACITY ........................... 60 TONS
 DIAMETER OF CRANKSHAFT A MAIN BEARINGS ... 4"
 STROKE ................................... 4"
 BED AREA ................................. 21" X 32"
 SHUT HEIGHT .............................. 14-1/4"
 ADJUSTMENT OF SLIDE ...................... 3"
 SLIDE AREA ............................... 17" X 12"
 STROKES PER MINUTE, INFINITELY VARIABLE .. 40 TO 80
 DEPTH OF THROAT, CENTER OF RAM TO FACE OF COLUMN 11"
 WIDTH OF OPENING THROUGH BACK ............ 15"
 STEM HOLE IN SLIDE (DIAMETER X DEPTH)..... 2" X 3"

 EQUIPPED WITH:

 - SINGLE GEARED DESIGN

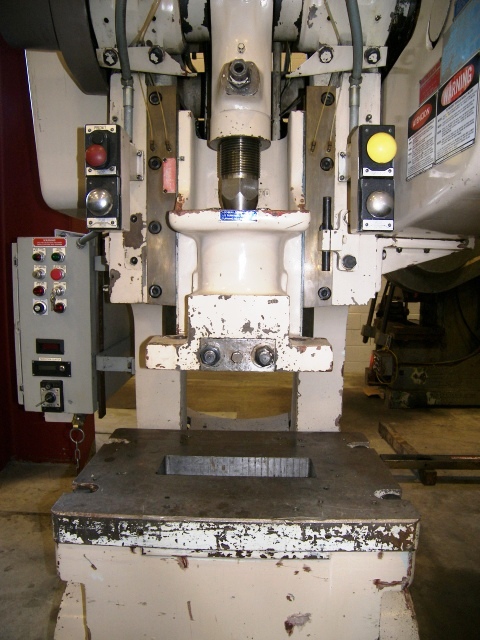

 - AIR FRICTION CLUTCH AND BRAKE WITH RAM MOUNTED DUAL
   ELECTRIC PALM BUTTON CONTROL
 - AIR COUNTERBALANCE
 - EDDY DYNAMATIC ELECTRICALLY ACTUATED VARIABLE SPEED DRIVE

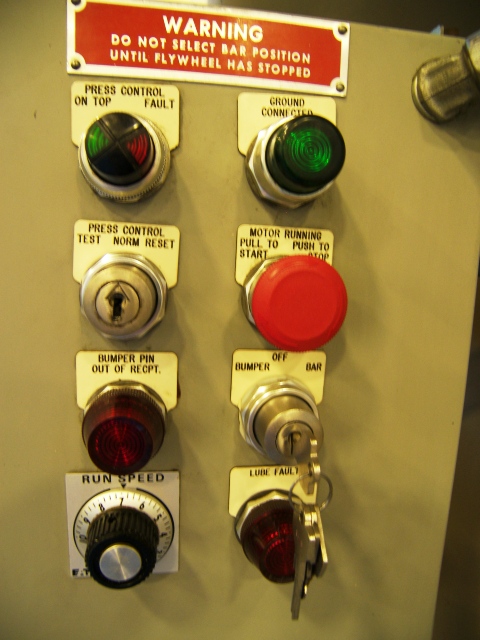

 - KEY LOCK SELECTOR SWITCHES FOR TEST/NORM/RESET,
   BUMPER/OFF/BAR, PRODUCTION COUNTER WITH LED DISPLAY, AND
   OFF/INCH/SINGLE OR CONTINOUS MODES OF OPERATION
 - TRABON AUTOMATIC LUBRICATION SYSTEM
 - BOLSTER PLATE - 21"LR X 32"FB X 3"H

 10 HP, 3/60/230-460 VOLT DRIVE AND ELECTRICAL CONTROLS

 MACHINE IS WIRED FOR 460 VOLT OPERATION

 APPROX. WEIGHT: 12,000 LBS.
