Reference Number: 122782

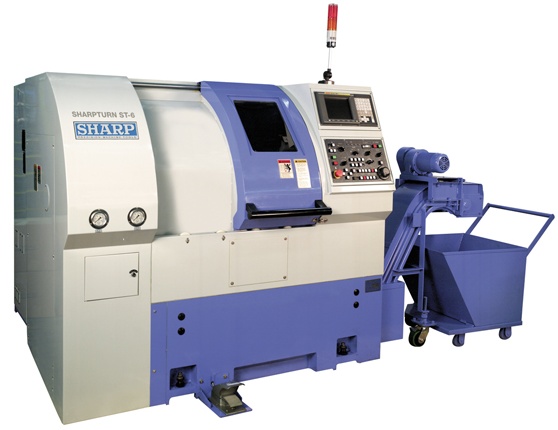

SHARPTURN MODEL ST-6 MACHINEPrice: On Request
SPECIFICATIONS:
SWING OVER BED - 19"
MAXIMUM TURNING DIAMETER - 9.8"
MAXIMUM TURNING LENGTH - 13"
DISTANCE BETWEEN CENTERS - 14.8"
SPINDLE DRIVE MOTOR - 7.5/10 HP, AC
SPINDLE RPM - 20-6,000 RPM
SPINDLE NOSE - A2-5 ASA
SPINDLE BORE - 2"
SPINDLE TAPER - MT4
STANDARD CHUCK - 6" Diameter
SPINDLE FRONT BEARING BORE - 3.15" Diameter
DRAW TUBE BORE - 1-3/4" Diameter
MAXIMUM X-AXIS CROSS TRAVEL - 5.1"
MAXIMUM Z-AXIS LONGITUDINAL TRAVEL - 13.8"
RAPID TRAVERSE RATE X & Z AXES - 945 IPM
TOOL TURRET - V8
BED SLANT ANGLE - 45 DEGREE
TAILSTOCK QUILL - 2.3" Diameter
QUILL TRAVEL - 3.5" Hydraulic
QUILL TAPER - MT4
QUILL HYDRAULIC PRESSURE - 340 LBS.
NET WEIGHT - 6,600 Lbs
FLOOR SPACE - 57" X 71"
(Specifications are subject to change without notice)
STANDARD EQUIPMENT:
3-JAW 6" HYDRAULIC CHUCK
HYDRAULIC QUILL IN MANUAL TAILSTOCK
FANUC MODEL 18T-C CONTROL
OPTIONAL ACCESSORIES:
2-JAW 8" HYDRAULIC CHUCK
5" COLLET CHUCK
BAR FEEDER
PARTS CATCHER
MANUAL TOUCH SENSOR
C-AXIS
AUTOMATIC FRONT DOOR
CHIP CONVEYOR & BUCKET
