Reference Number: 122783

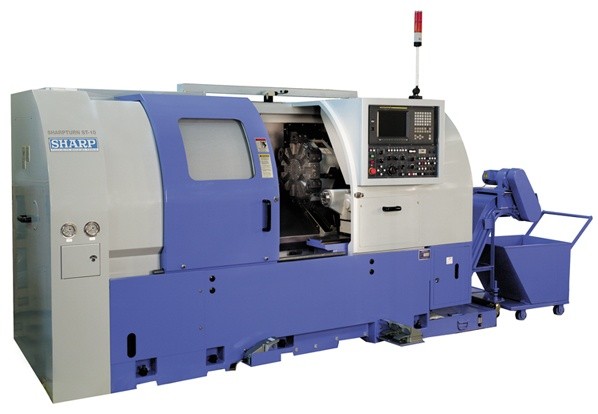

SHARPTURN MODEL ST-10Price: On Request
MACHINE SPECIFICATIONS:
SWING OVER BED - 23"
MAXIMUM TURNING DIAMETER - 11"
MAXIMUM TURNING LENGTH - 18"
DISTANCE BETWEEN CENTERS - 20.5"
SPINDLE DRIVE MOTOR - 25 HP AC SERVO
SPINDLE RPM - 10-4,000 RPM
SPINDLE NOSE - A2-6 ASA
SPINDLE BORE - 2.4"
SPINDLE TAPER - MT6
STANDARD CHUCK - 10" Diameter
SPINDLE FRONT BEARING BORE - 4.3" Diameter
DRAW TUBE BORE/BAR CAPACITY - 2.05" Diameter
MAXIMUM X-AXIS CROSS TRAVEL - 7.5"
MAXIMUM Z-AXIS LONGITUDINAL TRAVEL - 20.5"
RAPID TRAVERSE RATE X AXES - 585 IPM
RAPID TRAVERSE RATE Z AXES - 780 IPM
TOOL TURRET - V12
BED SLANT ANGLE - 30-DEGREE
TAILSTOCK QUILL - 3.5" Diameter
QUILL TRAVEL - 4.7" Hydraulic
QUILL TAPER - MT5
QUILL HYDRAULIC PRESSURE - 1,100 LBS.
NET WEIGHT - 10,400 Lbs
FLOOR SPACE - 76" X176"
(Specifications are subject to change without notice)
STANDARD EQUIPMENT:
3-JAW 10" HYDRAULIC CHUCK
HYDRAULIC QUILL IN MANUAL TAILSTOCK
COOLANT SYSTEM
AUTOLUBE SYSTEM
WORK PIECE COUNTER
OD, FACING, BORING BARS
DRILL, BORING BAR SLEEVES
FANUC MODEL 18T-C CONTROL
OPTIONAL ACCESSORIES
2-JAW 8" HYDRAULIC CHUCK
5" COLLET CHUCK
BAR FEEDER
PARTS CATCHER
MANUAL TOUCH SENSOR
C-AXIS
AUTOMATIC FRONT DOOR
CHIP CONVEYOR & BUCKET
OPERATOR ERROR ALARM LAMP
OPERATION END LAMP
CONVERSATIONAL PROGRAMMING
CHIP CONVEYOR & BUCKET
