Reference Number: 122788

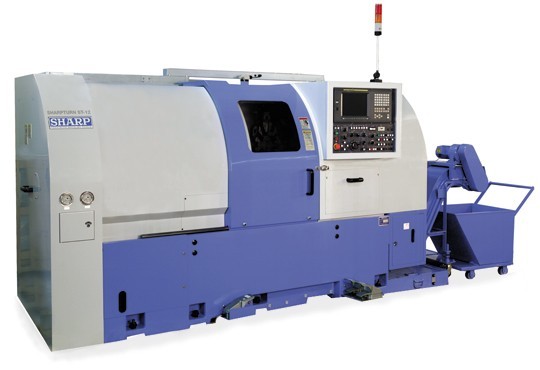

"NEW" SHARPTURN MODEL ST-12 CNC TURNING CENTER

MACHINE SPECIFICATIONS
SWING OVER BED - 25.2"
MAXIMUM TURNING DIAMETER - 14.17"
MAXIMUM TURNING LENGTH - 25.59"
DISTANCE BETWEEN CENTERS - 29.55"
SPINDLE DRIVE MOTOR - 20/25 HP, AC
SPINDLE RPM - 10-3,500 RPM
SPINDLE NOSE - A2-8 ASA
SPINDLE BORE - 3.5"
SPINDLE TAPER - MT6
STANDARD CHUCK - 12" Diameter
SPINDLE FRONT BEARING BORE - 5.12" Diameter
DRAW TUBE BORE - 3.07" Diameter
MAXIMUM X-AXIS CROSS TRAVEL - 9.59"
MAXIMUM Z-AXIS LONGITUDINAL TRAVEL - 29.53"
RAPID TRAVERSE RATE X AXES - 585 IPM
RAPID TRAVERSE RATE Z AXES - 780 IPM
TOOL TURRET - V12
BED SLANT ANGLE - 30-DEGREE
TAILSTOCK QUILL - 3.54" Diameter
QUILL TRAVEL - 4.72" Hydraulic
QUILL TAPER - MT5
QUILL HYDRAULIC PRESSURE - 1,320 LBS.
NET WEIGHT - 14,300 Lbs
FLOOR SPACE - 190" X 89"
(Specifications are subject to change without notice)

STANDARD EQUIPMENT:
 Fanuc 18T Control             Work Piece Counter
 12" 3-Jaw Hyd. Chuck          Operation Error Alarm Lamp
 Cooling System                Boring Holder
 Working Light Equipment       Drill Sleeve (MT#2,3)
 OD Tool Holder                Paint for Repair
 Facing Tool Holder            Chip Conveyor & Chip Bucket
 Tool Kit                      Hydraulic Tailstock
 Hoisting Hook                 Hydraulic Power System
 Chuck Pedal                   Live Center (MT#5)
 Auto Lubrication System       Operation End Lamp
 Boring Bar Sleeve             Leveling Screw & Pads
              Operation & Maintenance Manual


OPTIONAL ACCESSORIES
Tool Touch Sensor
U-Drill Holder
U-Drill sleeve
Extra Boring Bar Sleeve
Torque Limit Device
OD tool Holder
Programmable Front Door
Programmable Tailstock
Transformer
Conversational Programming For 18T
Bar Feeder

SUGGESTED RETAIL PRICE MODEL: ST12 CNC........ $95,900
                              CALL FOR OUR PRICE!

  "NEW" SHARPTURN MODEL ST-12MC CNC TURNING CENTER
12" Hydraulic Chuck
2.92" Bar Capacity
A2-8 Spindle Nose
3,375 RPM
20/25 HP Motor
One-Piece Casting
V12 Turret
Fanuc 18T Control
Chip Conveyor and Bucket
C-Axis
Live Tooling

OPTIONAL ACCESSORIES
Tool Touch Sensor
U-Drill Holder
U-Drill sleeve
Extra Boring Bar Sleeve
Torque Limit Device
OD tool Holder
Programmable Front Door
Programmable Tailstock
Transformer
Bar Feeder

SUGGESTED RETAIL PRICE MODEL: ST12MC CNC........ $116,900
