Reference Number: 123059

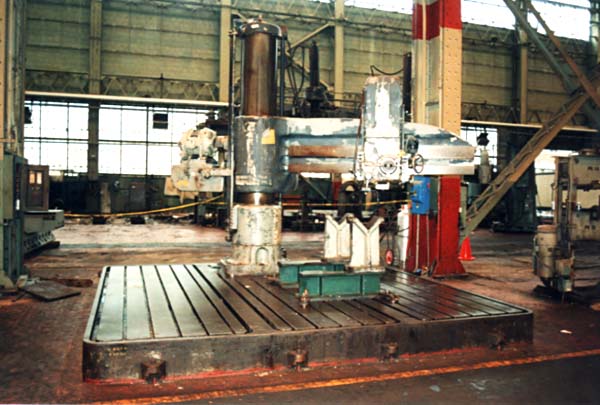

 8' x 22" CARLTON RADIAL DRILL w/ OVERSIZED BASE
 YEAR: 1940, S/N: 5A-1009

 SPECIFICATIONS:
 ARM LENGTH ................................. 8'
 DIAMETER OF COLUMN ......................... 22"
 MAXIMUM SPINDLE RADIUS ..................... 9'3"
 MINUMUM SPINDLE RADIUS ..................... 2'6"
 MAX DISTANCE, SPINDLE TO BASE .............. 98"
 MIN DISTANCE, SPINDLE TO BASE .............. 20.5"
 WORKING SURFACE OF BASE .................... 61"W x 102"L
 OVERALL LENGTH OF BASE ..................... 170"
 HEIGHT OF BASE ............................. 12.5"
 VERTICAL TRAVEL OF SPINDLE IN HEAD ......... 24"
 SPINDLE DIAMETER ........................... 4"
 TAPER IN SPINDLE ........................... #6 MT
 TRAVERSE OF ARM ON COLUMN .................. 53.5"
 TRAVERSE OF HEAD ON ARM .................... 81"
 36 SPINDLE SPEEDS .......................... 80 TO 800 RPM
 18 FEEDS ................................... .004 -.125 IPR
 TAP LEADS .................................. 8,11,14,18 TPI
 MAX HEIGHT OVER COLUMN CAP ................. 13'6"
 MAX HEIGHT OVER HEAD ....................... 14'5"
 APPROX WEIGHT INCLUDING TILT TABLE ......... 67,700 LBS

 EQUIPPED WITH:
 NEW SPINDLE INSTALLED 2002
 28 1/4" x 32 1/4" x 24" CARLTON T-SLOTTED TILTING BOX TABLE
 T-SLOTTED BASE
 POWER RAPID TRAVERSE TO HEAD
 POWER COLUMN CLAMPING
 HARDENED WEAR STRIP ON ARM
 25 HP 3/60/220-440 VOLT MAIN DRIVE MOTOR WITH CONTROLS
 WIRED FOR 3/60/220 VOLT OPERATION
