Reference Number: 123593

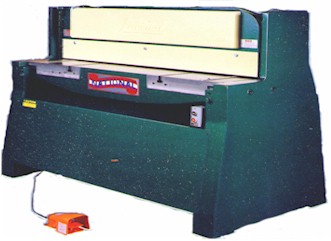

"NEW" NATIONAL HYDRAULIC SHEARPrice: On Request
MODEL NH4825 NH7225
CAPACITY MILD STEEL MILD STEEL
1/4" 6.4 mm. 1/4" 6.4 mm.
STAINLESS STAINLESS
1/8" 3.2 mm. 1/8" 3.2 mm.
STROKES PER MINUTE APPROX. 20 APPROX. 20
CUTTING LENGTH 48" 1219 mm. 72" 1829mm.
SHIPPING WEIGHT 5000 lbs. 6000 lbs.
FLOOR SPACE W/GAUGES 66 1/2"x98"x54" 84"x98"x54"
FLOOR SPACE W/O GAUGES 66 1/2"x38"x54" 84"x38"x54"
OIL RESERVOIR CAPACITY 26 gal. 32 gal.
MOTOR 7 1/2 hp 208VOLT 7 1/2 hp 208VOLT
1800 rpm 240 VOLT 1800 rpm 240 VOLT
3 PHASE 460 VOLT 3 PHASE 460 VOLT
National offers two powerful heavy duty cast iron precision
hydraulic shears. Standard with hydraulic rubber inserted
holddowns, quick adjusting handwheel back gauge for direct
reading with a positive lock, front arm extensions, table
gauges, heavy duty foot switch, and well lighted work
area. Comes with a full 1 year warranty.
The hydraulic unit conforms to J.I.C. standards featuring
simplicity of design. The National hydraulic system is
simple to maintain with standard replacement parts such as
filters, valves, cylinders, hoses, and oil. Clean
hydraulic oil is assured by a renewable cartridge type
filter in the return lines.
The National shear is actuated by a portable shrouded
electric foot switch attached to a long flexible cable so
it may be positioned comfortable to the operator.
National shears have high carbon, high chromium blades with
four cutting edges of premium quality tool steel and will
withstand nicking and wear better than relieved blades.
National blades are secured to the shear with tempered flat
head screws through countersunk holes in blades.
Complete cuts of full width pieces are 2" longer than
specified cutting length. This high strength cast iron
constructed frame made of the highest tensile strength
metal needed for long life and accurate shearing.
Underdrive contruction with downward cylinders and major
hydraulics under the bed gives the shear a low profile.
