Reference Number: 123602

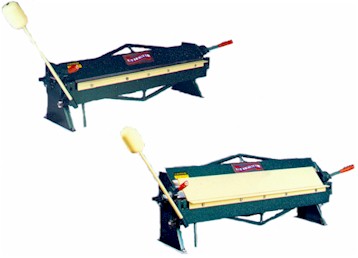

"NEW" NATIONAL BENCH MODEL BOX & PAN BRAKESPrice: On Request
MODEL U4816 S4816
CAPACITY MILD STEEL MILD STEEL
16 GAUGE 1.6mm. 16 GAUGE 1.6mm.
STAINLESS STAINLESS
20 GAUGE .9mm. 20 GAUGE .9mm.
MAX LIFT OF BEAM 1 1/4" 1 1/4"
32mm. 32mm.
FINGER WIDTH 2" 3" 4"
51mm. 76mm. 102mm.
MAX DEPTH OF BOX 4"
102mm.
BENDING LENGTH 48 1/4" 48 1/4"
1226mm. 1226mm.
SHIPPING WEIGHT 500 lbs. 470 lbs.
227 kgs. 213 kgs.
Simplicity of design allows these brakes to work in the
most direct fashion. Easy to set up and operate. Body
sections are welded steel plates, with heavy truss rods and
braces for longer life and greater strength. These brakes
are standard with extension handles, counterweight, apron
stop for repeat bends, and replaceable bushings at points
of wear.
MODEL: U4816: 48" 16 Gauge Box & Pan Brake
Standard with 2", 3", and 4" fingers, two extension handles,
counterweight, and apron stop for repeat bends.
MODEL: S4816: 48" 16 Gauge Heavy Duty Brake
Standard with counterweight, tow extension handles, apron
stop for repeat bends.
MODEL U4816, PRICE $1,175.00
MODEL S4816, PRICE $1,070.00
