Reference Number: 123607

 "NEW" NATIONAL HEAVY DUTY BOX AND PAN BRAKES

 MODEL       U6-4812      U6-7212      U6-9614     U6-12016
 CAPACITY    MILD STEEL   MILD STEEL   MILD STEEL  MILD STEEL
             12 GAUGE     12 GAUGE     14 GAUGE    16 GAUGE
             STAINLESS    STAINLESS    STAINLESS   STAINLESS
             16 GAUGE     16 GAUGE     18 GAUGE    20 GAUGE
 MAX DEPTH
   OF BOX    6"           6"           6"          6"
 BENDING
   LENGTH    49"          73"          97"         121"
 SHIPPING
   WEIGHT    1900 lbs.    2530 lbs.    2800 lbs.   3200 lbs.

 FLOOR SPACE  W/COUNTER WEIGHT
 MODEL:U6-4812:  95"x27"x55"
 MODEL:U6-7212:  126 1/2"x29"x59"
 MODEL:U6-9614:  153"x 27 x59"
 MODLE:U6-12016: 177" x 29" x 59"

 FINGER WIDTH:    3"    4"      5"      6"        TOTAL
 MODEL: U6-4812   5     2       5       0         12
 MODEL: U6-7212   5     4       7       1         17
 MODEL: U6-9614   5     6       9       2         22
 MODEL: U6-12016  6     0       10      2         28

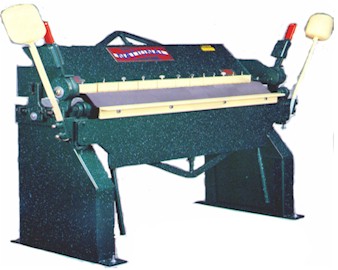

 National offers four heavy duty box and pan brakes made in
 the U.S.A.  Standard with heavy body construction,
 precision bearings on the apron, two large cast iron
 counterweights, and apron stop for repeat bends.  The
 National name means quality.


 Section fingers are precision machines from rolled steel
 bar stock for maximum strength.   The fingers can be
 adjusted or removed quickly by the loosening of the thumb
 screw.   Heavy duty steel plates and tension bars are
 precision incorporated for minimum deflection.

 MODEL U6-4812, PRICE $4,240.00
 MODEL U6-7212, PRICE $5,380.00
 MODEL U6-9614, PRICE $6,245.00
 MODEL UG-12016, PRICE $7,295.00
