Reference Number: 124222

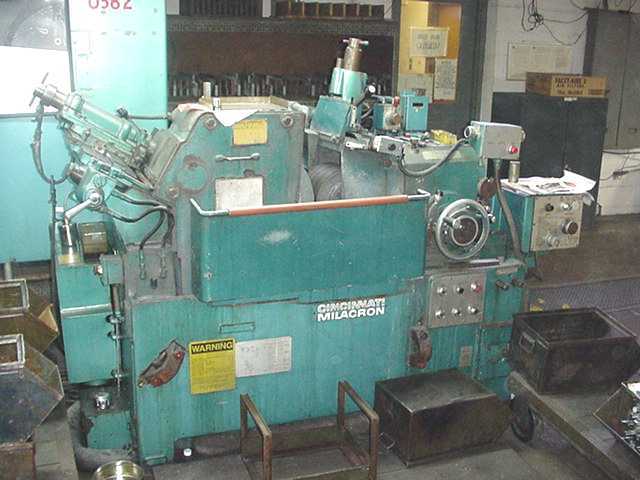

CINCINNATI MILACRON CENTERLESS GRINDERPrice: On Request
MODEL: CINCO 15 S/N: 35020086-005 NEW: 1986
CAPACITY:
STD. THRU FEED AND INFEED
WORK RESTS: 0 TO 3" DIA.
MAX. WORK DIAMETER DEPENDING
ON WHICH WORK REST IS ORDERED: 4" DIA.
WHEELS:
GRINDING WHEEL, WIDTH UP TO: 8"
DIA. CAPACITY: 17" T0 24"
HOLE: 12" STD.
REGULATING WHEEL,WIDTHS UP TO: 8"
DIA. CAPACITY: 12" STD.
MAXIMUM: 15"
MINIMUM: 9-1/2"
HOLE: 5"
DRIVE:
GRINDING WHEEL DRIVE MOTOR: 15 HP
REGULATING WHEEL DRIVE MOTOR: 1-1/2 HP
REGULATING WHEEL SPEEDS:
INFINITELY VARIABLE: 15 TO 300 RPM
SIZING ADJUSTMENT:
ACCURATE INFEED ADJUSTMENT
BY HANDWHEEL GRADUATED IN: 0.001"
APPROXIMATE MACHINE WEIGHT: 8,100 LBS.
APPROXIMATE MACHINE DIMS: 90"L X 50"W X 64"H
EQUIPPED WITH:
"ELECTRO-HYDRAULIC" AUTOMATIC INFEED OPTION
FILMATIC BEARINGS
24" DIAMETER WHEEL CAPABILITY
WORK REST
"BARNES" COOLANT SYSTEM w/PAPER OR MAGNETIC FILTRATION
HYDRAULIC GRINDING WHEEL DRESSER
HYDRAULIC REGULATING WHEEL DRESSER
3/60/230-460 VOLT ELECTRICS
* INSPECT UNDER POWER IN OUR
HARRISON,N.J WAREHOUSE *
* * * EXCELLENT CONDITION & APPEARANCE * *
