Reference Number: 124383

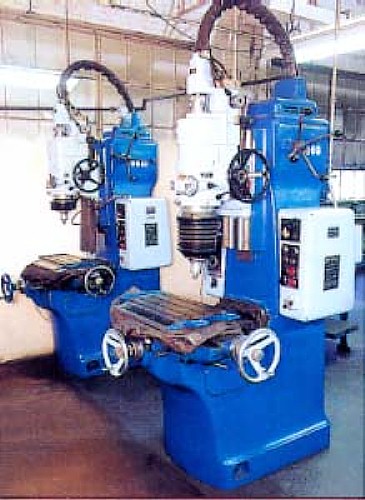

#2 MOORE JIG GRINDER
S/N: 7297 NEW: 1955

 TABLE SIZE .................................. 10" X 19"
TABLE MOVEMENT ...................... 10-1/2" X 16-1/2"
TABLE TOP TO WHEEL COLLET .................... 0 TO 16"
SPINDLE TO COLUMN WAYS ............................ 10"
SPINDLE COLUMN BELOW WAYS ..................... 12-1/2"
SPINDLE SPEEDS .................... INFINITELY VARIABLE
INFINITELY VARIABLE SPINDLE FEEDS .... 0 TO 120 STROKES
MAIN SPINDLE SLIDE TRAVEL ...................... 3-5/8"
ANGULAR ADJUSTMENT OF SPINDLE UP TO ........ 1-1/2 DEG.
3 DEGREES INCLUDED ANGLE
APPROXIMATE WEIGHT .......................... 3,150 LBS

 EQUIPPED WITH:
(1) MOORE JIG GRINDING HEAD
SPINDLE SPEEDS BY AIR-POWERED HYDRAULIC CONTROL
1/4 HP 4-SPEED 3/60/220 VOLT AC MOTOR

*** GOOD CONDITION ***
** INSPECT IN OUR HARRISON, N.J. FACILITY **
