Reference Number: 124684

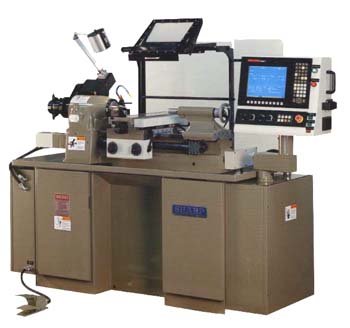

"NEW" SHARP MODEL: 1118CNC Plus
 CNC TOOLROOM LATHE
 Specifications: 1118CNC Plus
 Chuck size 5C
 Swing over bed 11"
 Max. turning length 18"
 Swing over cross slide 2.75"
 Tooling Gang stlye
 X travel 9"
 Z travel 5"
 Spindle bore 1.25"
 Bar capacity 0.6875"
 Spindle HP 5
 Spindle nose 4 deg. Hardinge
 Spindle RPM 0-4000
 No. of speed ranges 1
 Tool OD & ID size 1/2"
 Type of ways Linear
 Rapid traverse 394 ipm
 CNC control Anilam 4200T
 Tailstock quill dia. 1.36"
 Tailstock quill travel 3.75"
 Net weight 2,300 lbs
 Accuracy +/- 0.000,080"
 Repeatability 0.000,040"
 Country of Origin Taiwan

 Featuring:
 Spindle runout - 0.000,050" TIR
 Oversized cross slide
 2 Front mounted MPGs
 Ballscrews are supported on both ends by angular contact bearings
 Full CNC or manual operation

 Specifications:
 X axis travel - 8.65"
 Z axis travel - 11.2"
 Spindle speed range - 0-4000 RPM
 Tailstock quill taper - MT2
 AC servo motors - Yaskawa, 1 HP each
 Constant surface speed
  Ballscrew dias. - 1"Z, 0.75"X
 Spindle motor - 5 HP
 Spindle nose - 5C Collet mount
 Rapid traverse - 394 ipm
 Max. feed rate - 200 ipm
 Tooling - Gang Style (std.) or Quick change tool post (opt.)

 Standard Anilam 4200T CNC control features: PC Based CNC control
 12.1" TFT Color Active Matrix Screen
 8 GB Hard drive
 3.5" Floppy Disc
 Manual, semi-auto, auto and single-step modes
  Conversational programming
 G code programming
 Teach-in capability
 Canned cycles
 Shape editor

 Standard machine items:
 CNC threading with multiple lead capability
 Tailstock with tang in quill
 Full length rear splash guard
 Pull down chip cover
 Auto lube with low level indicator
 Coolant system
 Pneumatic Collet closer system with foot control
 Halogen work light
 Gang type tooling mounting plate, 6 x 12"
 220 volts std. (440 v. opt.)
