Reference Number: 124770

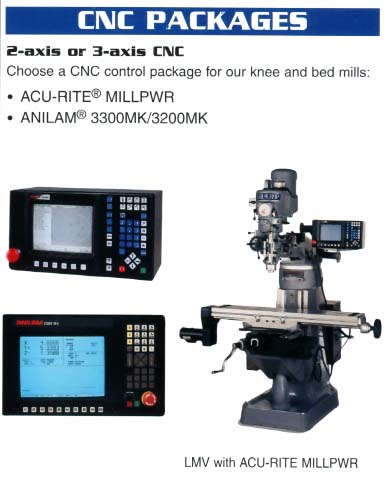

"NEW" SHARP MILL PACKAGE WITH ACU-RITE MILLPWRPrice: On Request
2-AXIS CONTROL / 3-AXIS READOUT
FULL - FEATURED
* MILLPWR IS A FULL - FEATURED 2-AXIS CONTROL/3-AXIS
READOUT WITH A NUMBER OF SOFTWARE AND HARDWARE FEATURES.
SOFTWARE
Dimensioning Functions:
ABS/INC, PLOAR/CARTESIAN, INCH/METRIC
Programming:
Program IN/OUT, Postiion/Drill, Mill Lines, Mill Arc,
Blend (Corner Radius) Holes (Bolt Circle, Rectangular
Array, Rectangular Frame, Line), Circle (Pocket, Frame,
Ring), Rectangle (Pocket, Frame, Slot, Facing)
SPECIAL FEATURES:
Custom Pockets, Repeat, Rotate, Mirror Image
RUN OPTIONS:
Single Step, Dry Run, Graphics Only, Manual Positioning
CALCULATOR FUNCTIONS:
Geometry, Trig.
HARWARE:
Operator Console:
Easy to use format. Conversational English, Three
Dimensional Hard Keys. 10" Flat Panel, Color LCD
Display. Remote Stop/Go Switch.
Controller Cabinet:
Heavy duty enclosure. Modular construction. 486SX
Microprocessor. 115VAC - 20 AMPS
Positioning:
Precision Glass Scale Linear Encoders. Closed Loop
Feedback through Servo Amplifiers. DC Servo Motors.
Precision Ground Ball Screws
MODEL: LMV/MP.......................
9 x 42" Table, 12 x 30" Travel, 3 hp vari-speed head,
R-8 Spindle, Hard Chromed Ways
MODEL: LMV50/MP.....................
9 x 50" Table, 12" x 37" Travel,3 hp vari-speed head,
R-8 Spindle, Hard Chromed Ways
MODEL: OMV/MP.......................
10 x 50 Table, 15 x 35" Travel, 3 hp vari-speed head,
R-8 Spindle, Box knee ways, hardened & ground ways
MODEL: HMV/MP.......................
10 x 51" Table, 16.5" x 38" Travel,3 hp vari-speed head,
R-8 Spindle, Box Column Ways, Hard Chromed Ways
MODEL: QMV-1/MP.....................
10" x 50" Table, 16.5" x 38" Travel, 3 hp vari-speed head,
R-8 Spindle, Box knee and column ways, hardened & ground
ways with Turcite Coating
MODEL: QMV-2/MP.....................
10 x 50" Table, 16.5" x 38" Travel, 4 hp vari-speed head,
#40 Spindle, Box Knee and Column Ways, Hardened & Ground Ways with Turcite Coating
