Reference Number: 124991

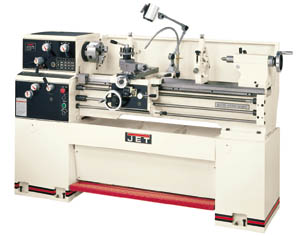

"BRAND NEW" JET Geared Head Bench Lathe

Features

 - Uniquely designed exclusively by JET
 - Tolerance test certificate included
 - Hardened and ground gears are featured in the headstock
   and gearbox
 - D1-4 spindle is precision ground for accuracy and
   supported by high-quality tapered roller bearings
 - Headstock is constantly oiled during operation
 - Splined, not keyed, shafts are utilized in the headstock
 - Gear box gives large threading and feed capabilities
   with no gear changes
 - V-way bed design is induction hardened and ground
 - Gap bed section provided for larger diameter work
 - Independent leadscrew and feed rod
 - Spindle actuation control is apron mounted
 - Inch-metric dials are standard
 - Compound and cross slide have backlash elimination
 - Adjustable gibs are incorporated in the carriage and
   slideways
 - Tailstock may be offset for turning tapers and includes
   an inch-metric graduated quill


Stock Number:        321810    321820    321830    321840
Model:              GH-1340W1 GH-1340W3 GH-1440W1 GH-1440W3
Swing Over Bed :            13"                 14"
Swing Over Cross Slide:     7-1/2"              8-1/2"
Swing Through Gap :         19"                 20"
Distrance Between Centers:  40"                 40"
Hole Through Spindle:       1-1/2"              1-1/2"
Spindle Mount:              D1-4                D1-4
Spindle Taper (With Sleeve):MT-5 (MT-3)         MT-5 (MT-3)
Number of Spindle Speeds:   12                  12
Range of Spindle Speeds(RPM):40 - 1,800         40 - 1,800
Number of Longitudinal and
  Cross Feeds:               40                 40
Range of Longitudinal
  Freeds (in/rev):          .0012-.0294        .0012-.0294
Number of Inch Threads:      40                 40
Range of Inch Threads        4 - 112TPI         4 - 112TPI
Number of Metric Threads:    22                 22
Range of Metric Threads(mm):.45 - 7.5          .45 - 7.5
Max Tool Size (in):          5/8 x 5/8          5/8 x 5/8
Max Compound Slide Travel:   3-1/2"             3-1/2"
Max Cross Slide Travel (in): 6-3/8              6-3/8
Max Carriage Travel (in):    37-1/2             37-1/2
Tailstock Spindle Travel(in):4-3/4              4-3/4
Taper in Tailstock Spindle   MT-3               MT-3
Steady Rest Capacity (in):   2-5/8              2-5/8
Follow Rest Capacity (in):   2-3/4              2-3/4
Width of Bed (in):           10-1/2             10-1/2
Main Motor:
 Model: GH-1340W1: 3 HP, 1 Ph, 230V Only
 Model: GH-1340W3: 3 HP, 3 Ph, 230/460V
 Model: GH-1440W1: 3 HP, 1 Ph, 230V Only
 Model: GH-1440W3: 3 HP, 3 PH, 230/460V
Standard Equipment:
 - Heavy-duty cabinet stand
 - 6" 3-jaw direct mount chuck with top reversing jaws
 - 8" 4-jaw chuck
 - 12" face plate
 - 4-way tool post
 - Steady and follow rest
 - Micro bed stop
 - Front removable chip tray
 - Spindle jog button
 - Foot brake
 - Coolant system with splash guard
 - Metric change gears
 - Halogen work lamp
 - Centers and headstock center sleeve
 - Threading dial
 - Tool box and tools

Optional Accessories:
 - 5C lever-type collet closer (321519)
 - 5C collet set (650014)
 - Taper attachment kit (321457) (installation available)
 - Single tool post (321431)
 - MT-3 Live center (465303)
 - Rotary phase converter (577309K)
 - Digital readouts installed
