Reference Number: 125008


MADE IN EUROPE

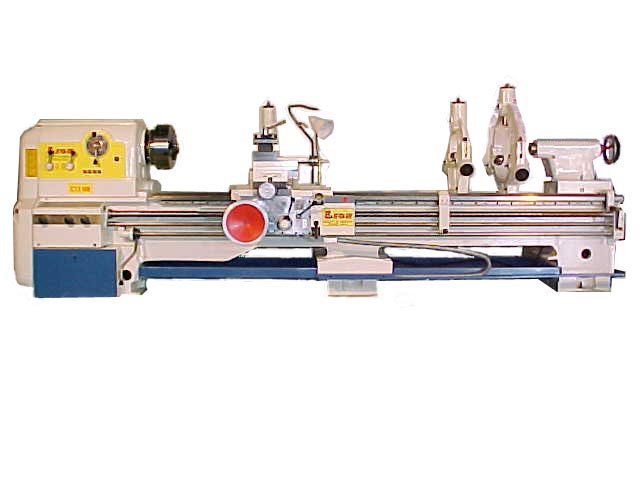

"BRAND NEW" LIONS LATHES MODEL: 31-M 39-M

THE FOLLOWING ARE JUST A FEW IMPRESSIVE FEATURES ON THE LION
LATHE MODEL: 31-M & 39-M:

* EUROPEAN QUALITY
* 4" SPINDLE BORE, (DIN-II)
* PRECISION SWEDISH SKF OR GERMAN FAG SPINDLE BEARINGS,
.0002" SPINDLE ACCURACY

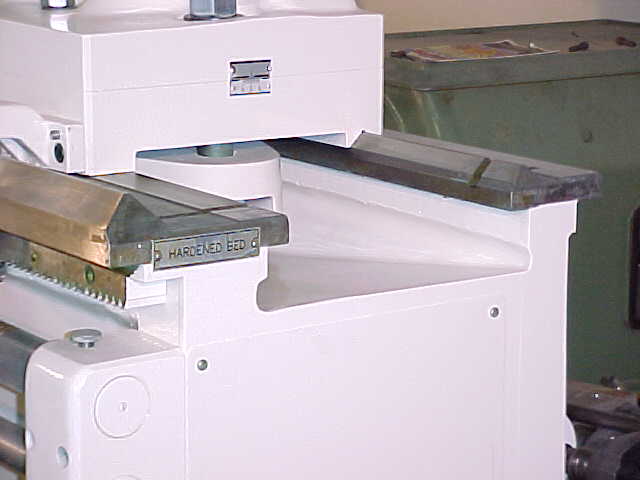

* WIDE 21-1/4" BEDWAYS, MEEHANITE CASTED, INDUCTION
HARDENED & GROUND
* MONOBLOCK CASTED
* HEAVY DUTY MULTI-DISC CLUTCH FOR OPERATION OF SPINDLE
* GEARS AND SHAFTS HARDENED AND GROUND
* INCH & METRIC THREADING WITHOUT CHANGE OF GEAR
* WIDE SELECTION OF THREADS AND FEEDS
INCH THREADING FROM 60 - 1/8 TPI
* 4-WAY RAPID TRAVERSE STANDARD


SPECIFICATIONS: 31-M 39-M
Swing over bed 31 1/2" 39"
Swing over cross slide 21 1/4" 29"
Swing in the gap 41" 49"
Length in gap from face plate 12" 12"
Distance between centers 60"/120"/200"
Spindle nose D1-11 or DIN-11
Spindle bore 4 1/16"
Spindle bearing Precision SKF Precision SKF
Diameter fron spindle bearing 9 1/2"
Number of spindle speeds 22
Range of speeds 8 - 1000 RPM
Number of threads 72
Range of inch threads 60 - 1/8 TPI
Range of metric threads 0.5 - 240
Range of module threads 0.125 - 60
Range of D.P. threads 240 - 0.5
Number of feeds 72
Range of longitudinal feeds .005 - 2.293
Range of cross feeds .0016 - .7339
Lead screw diameter 2"
Lead screw pitch 2 TPI
Rapid traverse speed 202"
Max traverse of cross slide 17 1/8"
Max traverse of top slide 6 5/16"
Taper turning working length 19 11/16"
Maximum taper + / - 10 Degrees
Quill diameter 4 5/16"
Quill taper bore 6 MT
Maximum quill stroke 7 1/4"
Lateral stroke of tailstock + / - 3/8"
Width of bed 21 1/4"
Bedways Hardened & Ground
Motor power 22 H.P. 25 H.P.
Electrics 3 Phase 220 V
Controls Switchboard
Rapid traverse motor Independent

ACCESSORIES:
INCLUDES TAPER, 3 & 4 JAW CHUCKS, STEADY REST, FOLLOW REST

STANDARD WARRANTY:
12 MONTHS MACHINE PARTS WARRANTY EXCLUDING ABUSE OF MACHINE
AND ELECTRICS. EXCLUDES LABOR.

EXTENDED WARRANTY:
$1,500. COVERS ON SITE LABOR FOR 1 YEAR
FULLY REFUNDABLE AT THE END OF PERIOD IF NEVER USED.
Price: On Request
