Reference Number: 125015
Price: $54,500

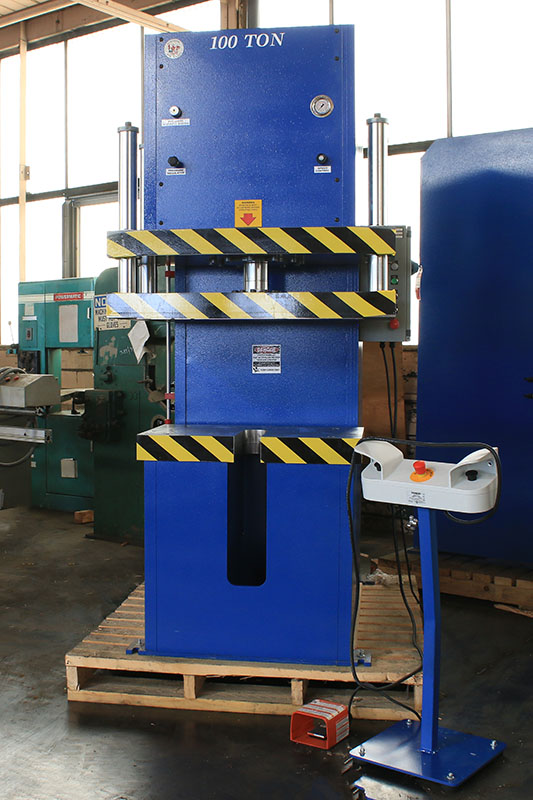

100 TON PRESSMASTER HYDRAULIC C-FRAME PRESS
MODEL: CFP-100 *BRAND-NEW*
RATED CAPACITY .............................. 100 TONS
SPEED ....................................... 112/44 IPM
RETURN ...................................... 162
TABLE WIDTH ................................. 30.5"
TABLE DEPTH ................................. 18"
U-SLOT WIDTH ................................ 5"
DAYLIGHT .................................... 22"
FULL STROKE ................................. 15"
THROAT ...................................... 12"
TABLE HEIGHT ................................ 36"
TOTAL DEPTH ................................. 66"
TOTAL HEIGHT ................................ 105"
TOTAL WIDTH ................................. 33.5"
CLEARANCE ................................... 6"
PLATEN WIDTH ................................ 24"
PLATEN DEPTH ................................ 18"
MOTOR ....................................... 20 HP
AMPS 230 VOLTS .............................. 48.0 AMP
AMPS 460 VOLTS .............................. 24.0 AMP
AMPS 575 VOLTS .............................. 19.1 AMP
STANDARD FEATURES:
- PRESSURE GAUGE
- PRESSURE REGULATOR
- INDEXABLE SPEED CONTROL
- DISTANCE REVERSE SWITCH
- RAM TRAVEL IS GUIDED BY PRECISION-GROUND GUIDE RODS
- ADJUSTABLE STROKE CONTROL
- JOG MODE USED FOR SIMPLIFYING SETUPS
- DUAL ELECTRIC PALM BUTTONS FOR OPERATOR SAFETY
- PROGRAMMABLE CONTROL SYSTEM (PCS)
- LOW SPEED TEFC BALDOR ELECTRIC MOTOR
- ONE YEAR WARRANTY
- MFG. IN NORTH AMERICA
O.A. 46"L X 72"W X 110"H, WT. 16,000#
OPTIONS:
- PRESSURE REVERSAL SWITCH .....................$400
- DUAL CONTROL-YOUR CHOICE OF USING PALM BUTTONS OR FOOT
PEDAL ........................................$600
- T-SLOTTING FOR BOLSTER OR UPPER RAM PLATE.....$10/INCH
- CUSTOM DESIGNS AVAIABLE - WE BUILD THEM YOUR WAY!
