Reference Number: 125107

MADE IN EUROPE

"BRAND NEW" LION LATHE, MODEL: 20-M

Description
Swing over bed...................... 20"
Swing over cross slide.............. 12 3/16"
Swing in the gap.................... 26"
Length in gap from face plate....... 9"
Distance between centers............ 40", 60", 80", 120"
Spindle nose........................ D1-8
Spindle bore........................ 2 7/16"
Spindle bearing..................... Precision SKF
Diameter fron spindle bearing....... 6"
Number of spindle speeds............ 15
Range of speeds..................... 19 - 2400 RPM
Number of threads................... 64
Range of inch threads............... 60 - 1/4 TPI
Range of metric threads............. 0.5 - 120
Range of module threads............. 0.125 - 30
Range of D.P. threads............... 240 - 1
Number of feeds..................... 96
Range of longitudinal feeds......... .0022 - .8375
Range of cross feeds................ .0011 - .4188
Lead screw diameter................. 1 3/4"
Lead screw pitch.................... 2 TPI
Rapid traverse speed................ 148"
Max traverse of cross slide......... 10"
Max traverse of top slide........... 5 5/16"
Taper turning working length........ 15 3/4"
Maximum taper....................... + / - 10 Degrees

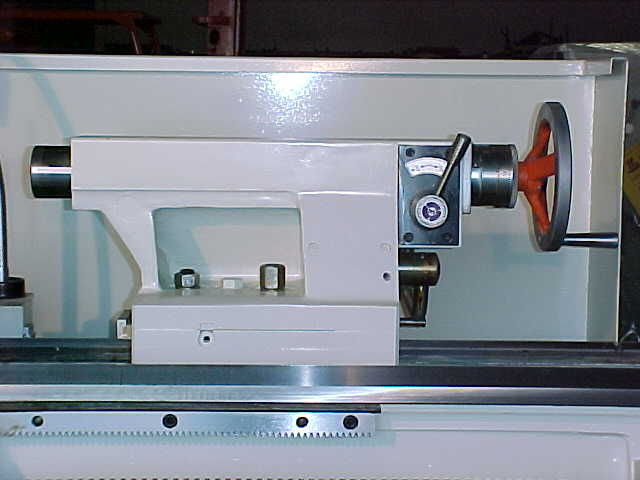

Quill diameter...................... 2 3/4"
Quill taper bore.................... 5 MT
Maximum quill stroke................ 8 1/4"
Lateral stroke of tailstock......... + / - 3/8"
Width of bed........................ 14 13/16"

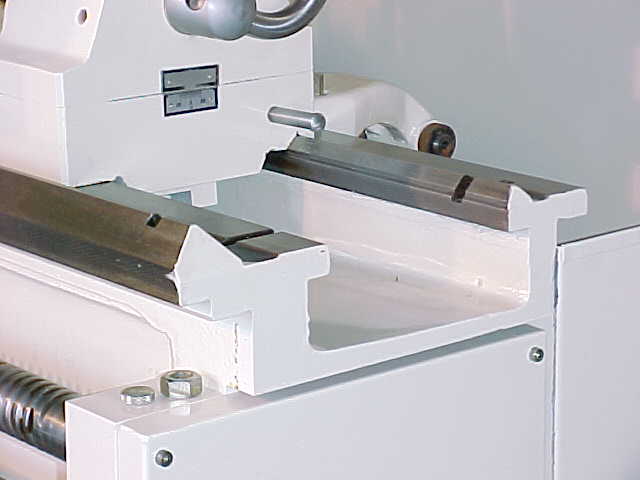

Bedways............................. Hardened & Ground
Motor power......................... 3 Phase 220 V
Controls............................ Switchboard
Rapid traverse motor................ Independent
Length.............................. 100", 120", 139", 178"
Width............................... 45"
Height.............................. 50"
Weight lbs. G.................. 5,200, 5,500, 5,800, 8,300
