Reference Number: 125109

MADE IN EUROPE

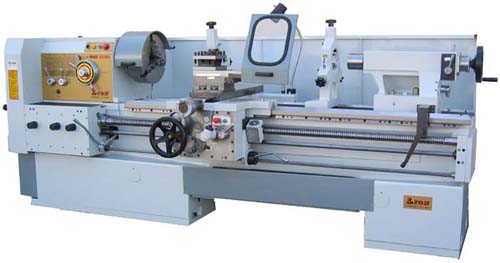

 "BRAND NEW" LION LATHE MODELS: 25-MS & 28-MS

                   25-MS    28-MS
 Swing Over Bed              25"        28"
 Swing Over Cross Slide           15 - 3/4"     18 - 3/4"

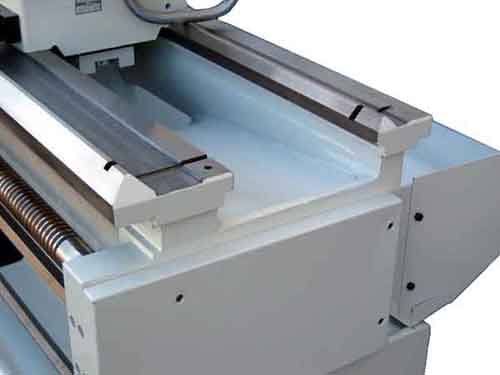

 Swing In The Gap              32"       35"
 Length In Gap From Face Plate       12"        12"
 Distance Between Centers        60", 80", 120" 160"

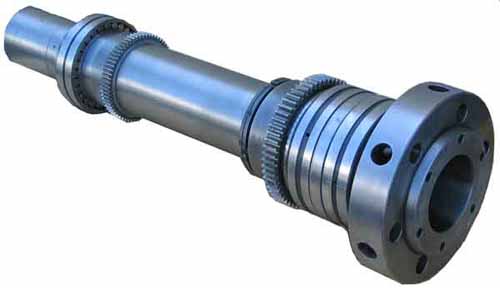

 Spindle Nose                 D1-11
 Spindle Bore                 4 - 1/16"
 Spindle Bearings                 Precision SKF
 Diameter Front Spindle Bearing        8 - ½"
 Number Of Spindle Speeds           18
 Range Of Speeds                 10 - 1500 RPM
 Number Of Threads              64
 Range Of Inch Threads              60 - 1/4 TPI
 Range Of Metric Threads           .5 - 120
 Range Of Module Threads           .125 - 30
 Range Of D.P. Threads              240 - 1
 Number Of Feeds                 64
 Range Of Longitudinal Feeds           .0018 - .4472
 Range Of Cross Feeds              .0008 - .1920
 Lead Screw Diameter              2"
 Lead Screw Pitch                 2 TPI
 Rapid Traverse Speed              176" P/M
 Max. Traverse Of Cross Slide           17"
 Max. Traverse Of Top Slide           5 - 11/16"
 Taper Turning Working Length           15 ¾"
 Maximum Taper                 + / - 10°

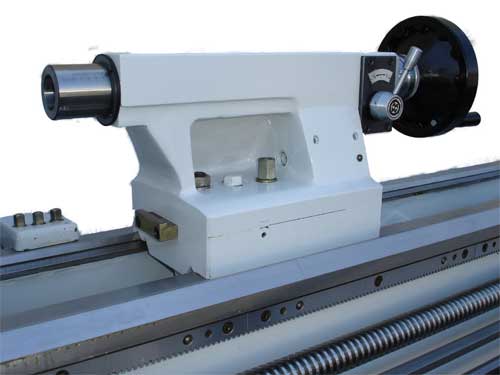

 Quill Diameter                 4 - 1/4"
 Quill Taper Bore                 6 MT
 Maximum Quill Stroke              7"
 Lateral Stroke Of Tailstock           + / - 3/8"
 Width Of Bed                 20 - 1/2"
 Ways                       Hardened & Ground
 Motor Power                 17.5  H.P.
 Electrics                    3 Phase  220 V
 Controls                    Switchboard
 Rapid Traverse Motor              Independent
 Length                 135", 155", 195", 235"
 Width                    54"
 Height                 53"       54"
 Weight Lbs.                9750,10700    9950,10900
                    12200,13100    12400,13300
