Reference Number: 125161
Price: $14,500

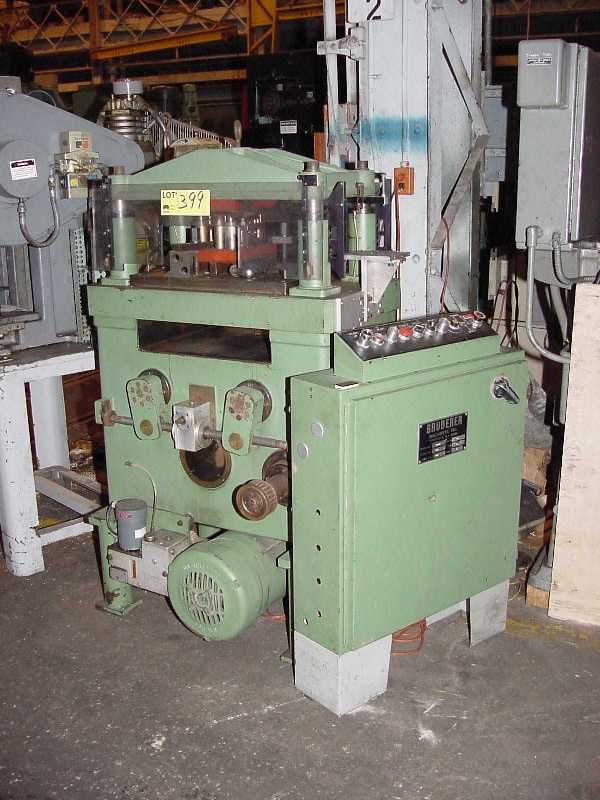

20 TON BRUDERER HIGH-SPEED STRAIGHT SIDE PRESS
MODEL #RPP-20 NEW 1981 S/N 8121
RATED CAPACITY ........................... 20 TONS
STROKE ................................... 1.5"
SHUT HEIGHT TO BED .....(MAX)............. 10.8"
SHUT HEIGHT TO BED .....(MIN)............. 9.8"
RAM ADJUSTMENT .........(POWER)........... 1"
SLIDE AREA .............(RL X FB)......... 31" X 16"
OPENING BETWEEN TIE BARS ..(RL X FB)...... 24" X 10"
BED AREA ...............(RL X FB)......... 21-1/2" X 26"
BOLSTER AREA ...........(RL X FB)......... 23" X 18"
BOLSTER THICKNESS ........................ 1-1/2"
STROKES PER MINUTE ....................... APPROX. 600
5 HP MOTOR
APPROX. MACHINE DIMENSIONS: 44" X 44" X 65"
APPROX. MACHINE WEIGHT: 3,000 LBS.
EQUIPPED WITH:
- AUTOMATIC CYCLE CONTROL
- FLYWHEEL DRIVE W/INTEGRAL AIR CLUTCH
- AIR BRAKE
- UPDATED CONTROLS
- TIE ROD CONSTRUCTION
- INCHING, SINGLE STROKE OR CONTINUOUS OPERATION
- 10" WINDOWS IN UPRIGHTS
- 18" X 23" X 1-1/2" BOLSTER & CENTRAL LUBE SYSTEM
