Reference Number: 125291

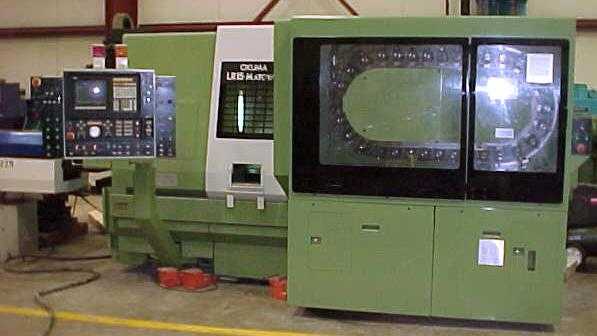

OKUMA BIG BORE 7-AXIS CNC TURNING & MILLING CENTERPrice: On Request
MODEL: LR15-MATC-Y/3T NEW:1990 OSP5000L CNC CONTROL
SPECIFICATIONS:
3.15" SPINDLE BORE, A2-8" SPINDLE NOSE, 2.6" BAR CAPACITY
AS EQUIPPED
17.75" SWING OVER WAYS
10" SWING OVER TURRET SLIDES
20" MAXIMUM RECOMMENDED PART LENGTH
65 TO 3,500 RPM MAIN SPINDLE WITH 360,000 POSITION FULL
C-AXIS
28 HP MAIN SPINDLE MOTOR

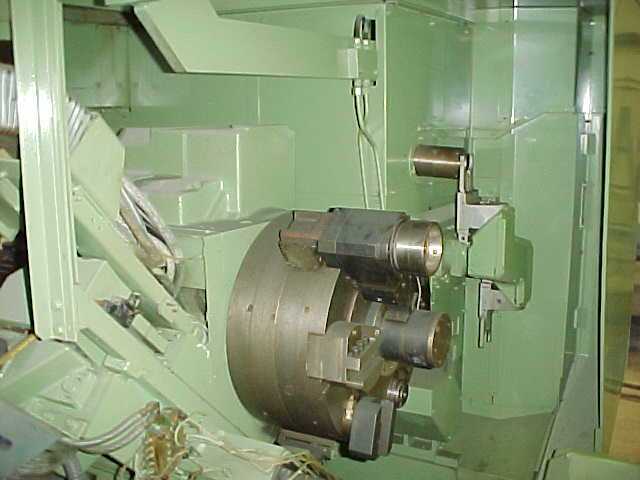

8 POSITION LOWER TURRET:
4.92" X-AXIS TRAVEL, 19.9" Z-AXIS TRAVEL

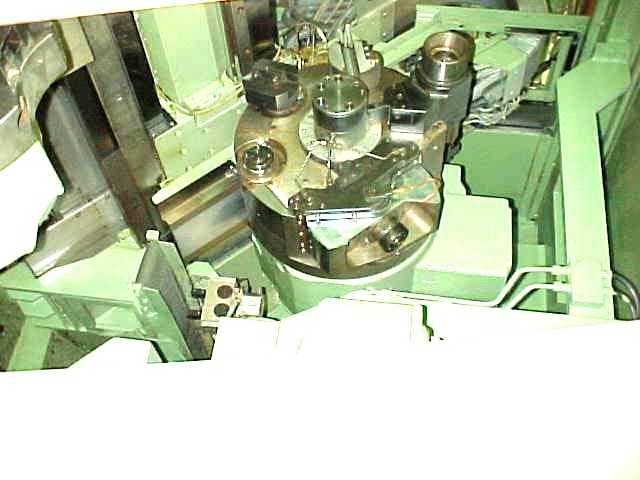

5 POSITION CENTER TURRET WITH (2) LIVE POSITIONS,
(2) CONVENTIONAL, 1 PICKOFF SUBSPINDLE:
7.68" X-AXIS TRAVEL, 31.1" Z-AXIS TRAVEL;
ONE LIVE TOOL POSITION PROVIDES +/- 1.97" Y-AXIS TRAVEL;
32 TOOL ATC W/BT40 SHORT TAPER TOOLING SERVES (2) LIVE
CENTER-TURRET POSITIONS
SYNCHRONIZED PICK-OF (OR MILLING) SUBSPINDLE: 8 HP /
3,000 RPM
8 POSITION FIXED UPPER TURRET WITH 8 HP/3000 RPM MOTOR LIVE
TOOLING:
MACHINE INCLUDES:
LNS SPRINT HYDROSTATIC 12' CAPACITY AUTO-LOAD BAR FEED
UNIT; REAR DISCHARGE CHIP CONVEYOR; L-ARM PART CATCHER;
ROBOT ARM PART CATCHER; PART DISCHARGE CONVEYOR;
2.625" CAPACITY COLLET CHUCK, MAIN SPINDLE
1.653" CAPACITY COLLET CHUCK, SUB SPINDLE

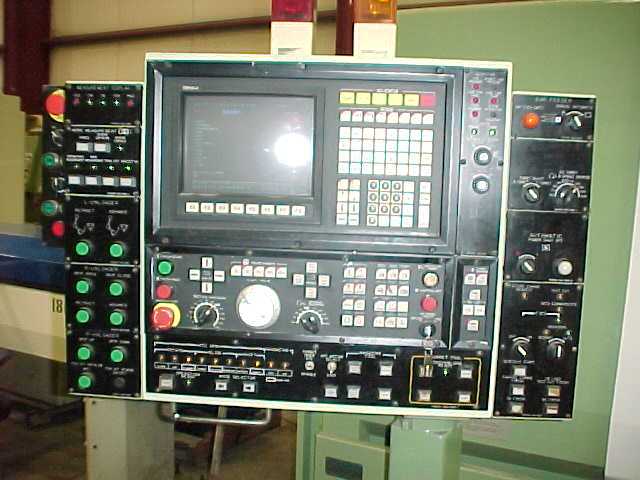

CONTROL INCLUDES:
SYNCHRONIZED FLAT TURNING OPTION, ABSOLUTE POSITION
FEEDBACK, LOAD MONITOR B, DNC C3 COMMUNICATIONS, TOOL
LIFE MANAGEMENT, CYCLE END AND ALARM BEACONS, EDIT
LOCKOUT A, ADDITIONAL 2 SETS M-CODES, ADDITIONAL 32 PAIRS
TOOL OFFSETS, AUTO POWER SHUTOFF, PROGRAM CAPACITY 60
METERS, PITCH ERROR COMPENSATION SOFTWARE
