Reference Number: 125407

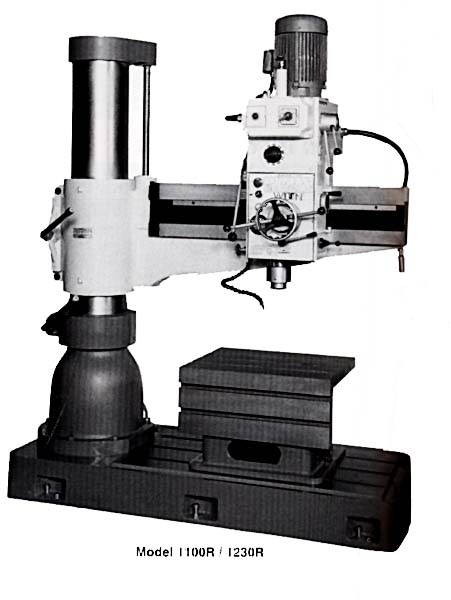

"BRAND NEW" WILTON 4' ARM RADIAL DRILL PRESS, MODEL: 1230R

FEATURES:
 - 1-7/8" Drilling capacity in steel - 1" tapping capacity
   in steel
 - Independent arm electric clamping system, which locks
   and unlocks the head and column
 - 12 Spindle speeds, with heat-treated and ground nickel
   chrome steel gears, lubricated with an automatic oil
   system.

STANDARD EQUIPMENT:
 - Counter Balanced Mechanism for Spindle Return
 - Arm Raising Safety Device Prevents Arm from Dropping
 - Built-In Work Light
 - Coolant Pump and Piping
 - Tool Kit
 - Box Table

SPECIFICATIONS:
Drilling Capacity*, Steel.......... 1-7/8"
Drilling Capacity*, Cast Iron...... 2-5/16"
Tapping Capacity*, Steel........... 1"
Tapping Capacity*, Cast Iron....... 1-1/2"
Boring Capacity*, Steel............ 3-3/8"
Boring Capacity*, Cast Iron........ 4-3/4"
Column Diameter.................... 11-13/16"
Distance from Column to Spindle
  Center, Max...................... 46"
Distance from Column to Spindle
  Center, Min...................... 13-3/4"
Travel of Head (Horizontal)........ 35"
Distance from Base to Spindle
  End, Max......................... 54"
Distance from Base to Spindle
 End, Min.......................... 19-3/8"
Travel of Arm (Vertical)........... 34-5/8"
Table Dimensions................... 27-7/8"x20-1/2"x16-1/2"
Base Dimensions.................... 67-3/4"x25-15/16"x6-1/2"
Spindle Taper...................... 4 MT
Quill Travel....................... 9-7/8"
Spindle Speeds (RPM)............... 12 (45-1550)
Feed Rates......................... 3 (.002, .004, .006 IPR)
Main Motor Horsepower.............. 2.5 Low / 5 High
Elevating Motor Horsepower......... 1
Coolant Equipment Horsepower....... 1/8
Coolant Tank Capacity.............. 4 Gallons
Machine Height from Floor (max).... 109-1/2"
Shipping Dimensions................ 80"L x 39"W x 89"H
Shipping Weight.................... 4,620 lbs.

*Capacities for continuous production will vary based on
 application.

* 2 YEAR WARRANTY ON PARTS & 1 YEAR WARRANTY ON ELECTRICS *
           * MONTHLY LEASE PACKAGES AVAILABLE *
