Reference Number: 125643

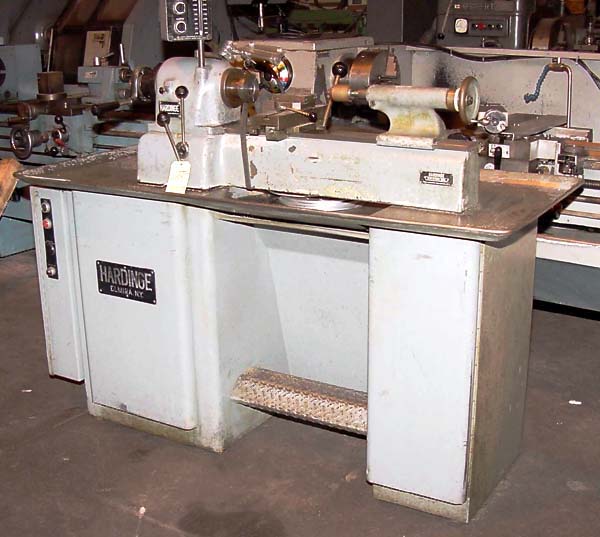

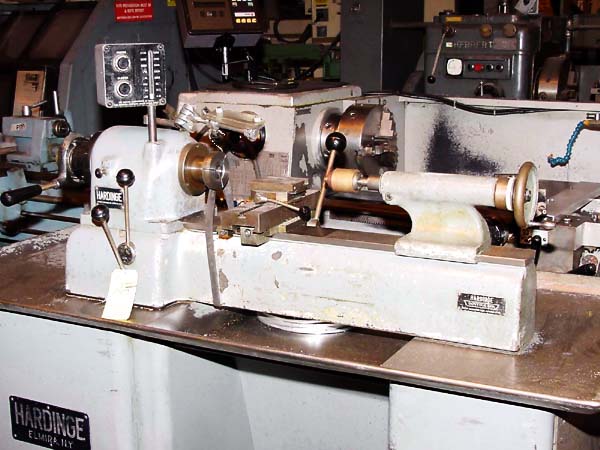

HARDINGE SECOND OPERATION LATHE
MODEL: DSM-59 S/N: 9873 NEW: 1967
SPECIFICATIONS:
SPINDLE CAP. w/ROUND 5C COLLETS ...... 1-1/16"
HEXAGON 5C COLLETS .... 7/8"
SQUARE 5C COLLETS ..... 3/4"
STEP CHUCKS ........... 1-1/16" TO 6"
JAW CHUCKS ............ 5"
JAW CHUCKS THROUGH SPINDLE 1-5/32"
SPINDLE TAPER ........................ 2-3/16" RH
LENGTH OF BED ........................ 36"
SWING OVER BED ....................... 9"
TRAVEL OF DOUBLE TOOL CROSS SLIDE .... 3-3/4"
TRAVEL OF TURRET SLIDE ............... 4"
DIAMETER OF TURRET HOLES ............. 5/8"
VARIABLE SPINDLE SPEED RANGE ......... 230 TO 3500 RPM
APPROX. WEIGHT ....................... 1,000 LBS.
EQUIPPED WITH:
-HEXAGON TURRET
-DOUBLE TOOL CROSS SLIDE WITH
-PUSH BUTTON CONTROL FOR VARIABLE SPEED
-BALL BEARING LEVER COLLET CLOSER
-SELF-CONTAINED COOLANT SYSTEM
* * VERY GOOD CONDITION * *
Price: $6,500
