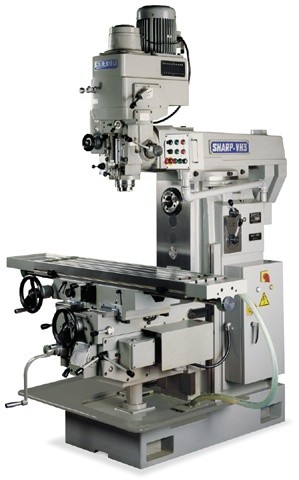

"NEW" SHARP MODEL: VH3 VERTICAL / HORIZONTAL MILLING MACHINE

SPECIFICATIONS:
TABLE:
 WORKING SURFACE / LENGTH x WIDTH.. 51-3/16"x11-13/16"
 TRAVEL LONGITUDINAL  x CROSS x
   VERTICAL........................ 37-3/8x14-13/16"x18-1/2"
 T-SLOT NOMIAL SIZE x NO. x PITCH.. 5/8 x 3 x 2-3/4"
 FEEDS (12) STEPS VERTICAL......... 1/4 - 12-7/16 IPM
 FEEDS (12) STEPS LONGITUDINAL..... 1/2 - 24-7/8 IPM
 RAPID TRAVERSE VERTICAL........... 59-13/16 IPM
 RAPID TRAVERSE LONGITUDINAL x
   CROSS........................... 116-1/2 IPM
VERTICAL SPINDLE:
 SPINDLE NOSE...................... #40 N.T.
 SPINDLE SPEED INFINITELY VARIABLE. 120 - 3,600 RPM
 DISTANCE FROM SPINDLE END TABLE... 5-1/8 - 23-5/8"
 DISTANCE FROM SPINDLE TO COLUMN... 3-7/8 - 24-1/8"
 QUILL FEEDS..................... 0.0019, 0.0038, 0.0076 IPR
 QUILL TRAVEL...................... 5-1/8"
 SWIVELING ANGLE OF HEAD (LEFT AND
  RIGHT)........................... 45 DEGREES
 CROSS TRAVEL OF ARM............... 20-1/16"
 HORIZONTAL ROTATION OF OVERARM.... 360 DEGREES
HORIZONTAL SPINDLE:
 SPINDLE NOSE...................... # 50 N.T.
 SPINDLE SPEEDS (12 STEPS)......... 35 - 1,382 RPM
 DISTANCE FROM CENTER OF SPINDLE TO
   OVERARM......................... 7-1/8"
 DISTANCE FROM CENTER OF SPINDLE TO
   TABLE........................... 7/8 - 19-3/8"
MOTORS:
 VERTICAL SPINDLE.................. 5 HP - 4 HP
 HORIZONTAL SPINDLE................ 7.6 HP - 4 P
 TABLE FEED AND RAPID TRAVERSE..... 3 HP - 4 P
 COOLANT PUMP...................... 1/8 HP - 2 P
MACHINE SIZE:
 OVERALL HEIGHT.................... 95-1/4"
 FLOOR AREA........................ 107 x 90"
 NET WEIGHT (APPROX)............... 5,830 LBS.
