Reference Number: 125912

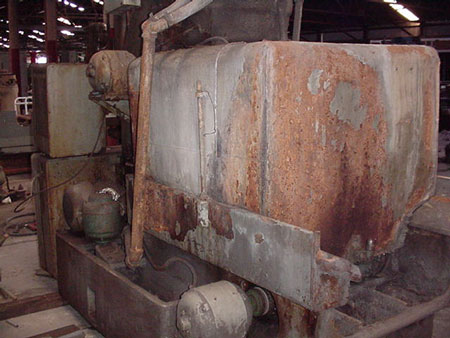

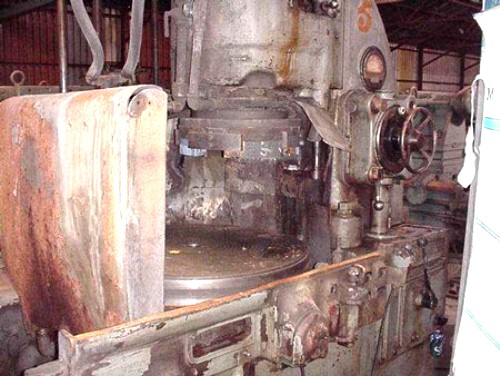

36" BLANCHARD ROTARY SURFACE GRINDERPrice: On Request
MODEL: #18-36 S/N: 6107 NEW: 1946
CHUCK DIAMETER .................................... 36"
SWING INSIDE GUARDS ............................... 39"
HEIGHT UNDER NEW WHEEL ............................ 12"
MAX. WEIGHT OF WORK LOAD ON CHUCK ........... 2,000 LBS
GRINDING WHEEL DIAMETER ........................... 20"
WHEEL SPEED ................................... 720 RPM
CHUCK SPEEDS (6) .......................... 6 TO 33 RPM
INF. VARIABLE POWER DOWNFEED ...... 0.004" TO .080" IPM
APPROX. DIMENSIONS ....................... 105"L X 61"W
APPROX. WEIGHT ............................. 13,000 LBS
EQUIPPED WITH:
25 H.P./3/60/220-440 VOLT SPINDLE MOTOR
36" ELECTRO-MAGNETIC CHUCK W/NEUTROFIER CONTROL
18" SEGMENTED WHEEL
WHEEL HEAD HAS RAPID RAISE AND LOWER INTERLOCKED W/FEED
SELF-CONTAINED COOLANT SYSTEM
** OFFERED "AS-IS" LOADED ON TRUCK **
** F.O.B. HOUSTON, TX **
