Reference Number: 126178

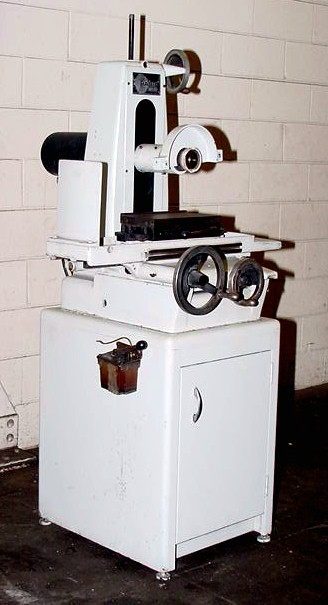

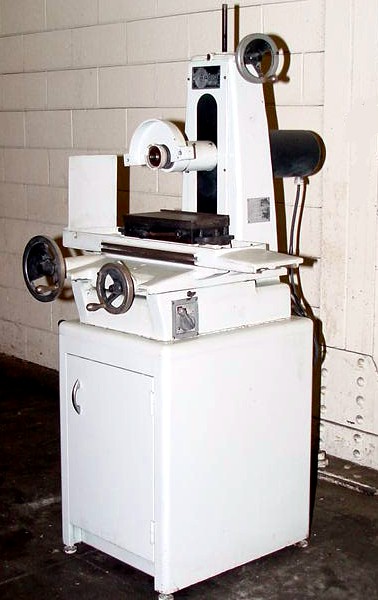

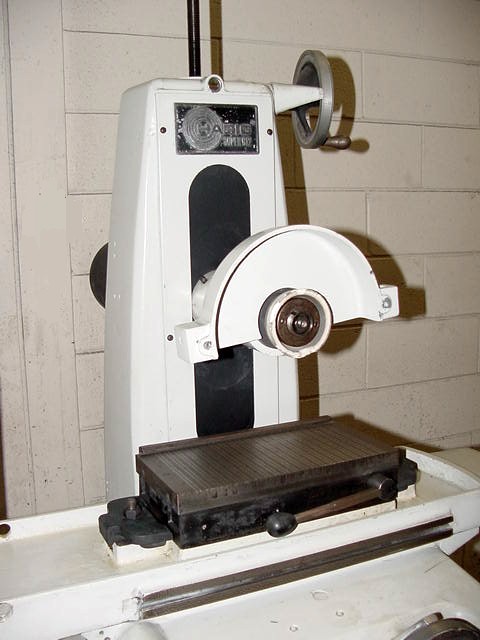

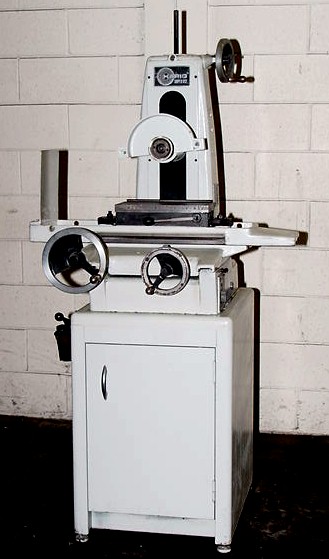

6" X 12" HARIG HAND FEED SURFACE GRINDERPrice: On Request

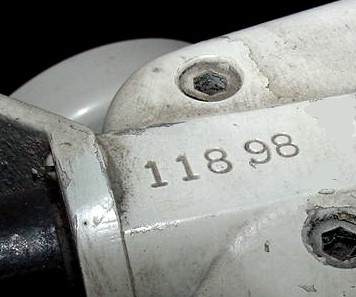

MODEL: 612 S/N: 11898 NEW: 1978
WIDTH AND LENGTH GROUND ...................... 6" X 12"
LONGITUDINAL TRAVEL ........................... 12-3/4"
CROSS FEED TRAVEL .............................. 6-3/4"
VERTICAL WORKING HEIGHT UNDER 7" WHEEL ............ 12"
MAXIMUM GRINDING WHEEL DIAMETER .................... 8"
ELEVATING HANDWHEEL GRAD. ..................... 0.0005"
CROSS FEED HANDWHEEL GRAD. ..................... 0.001"
SPINDLE SPEED ............................... 3,450 RPM
FLOOR AREA CABINET .......................... 21" X 25"
FLOOR AREA OPERATING SPACE .................. 48" X 45"
APPROXIMATE MACHINE WEIGHT .................... 900 LBS
EQUIPPED WITH:

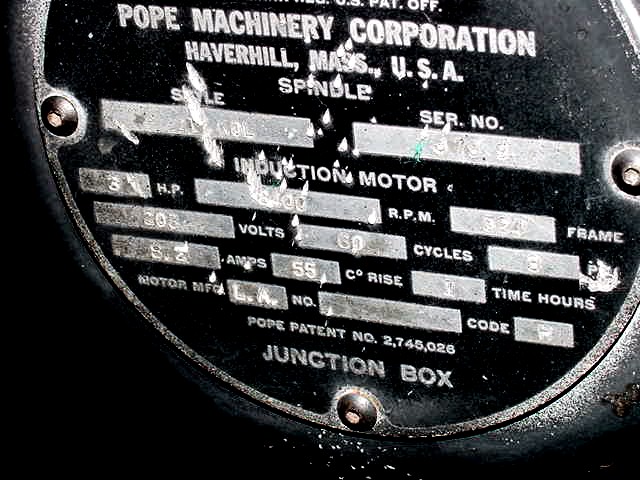

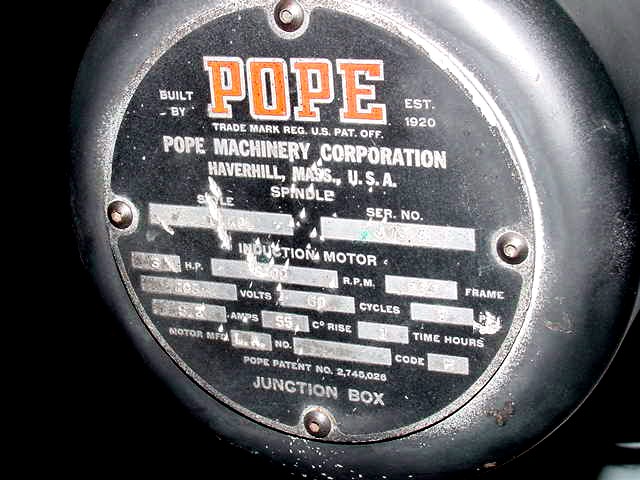

"POPE" 3 HP 3/60/208-230-460 VOLT DIRECT DRIVE
"CARTRIDGE TYPE" SPINDLE
V AND FLAT WAY CONSTRUCTION
HARIG "FLO-CLEAN" AUTOMATIC LUBRICATION SYSTEM

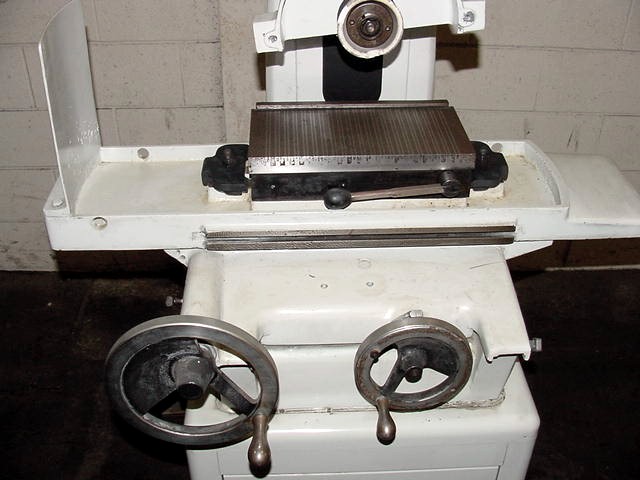

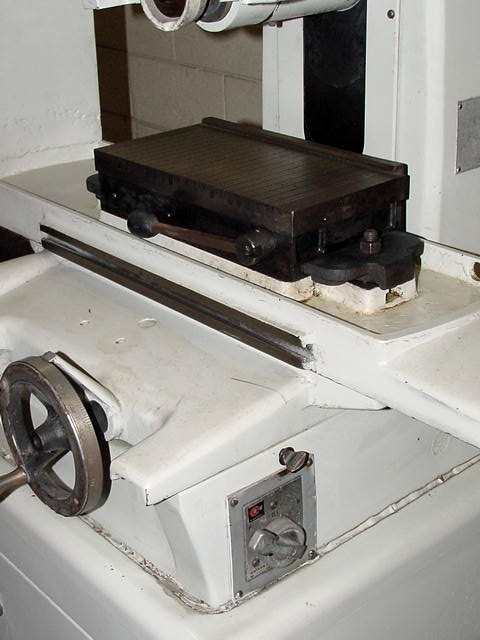

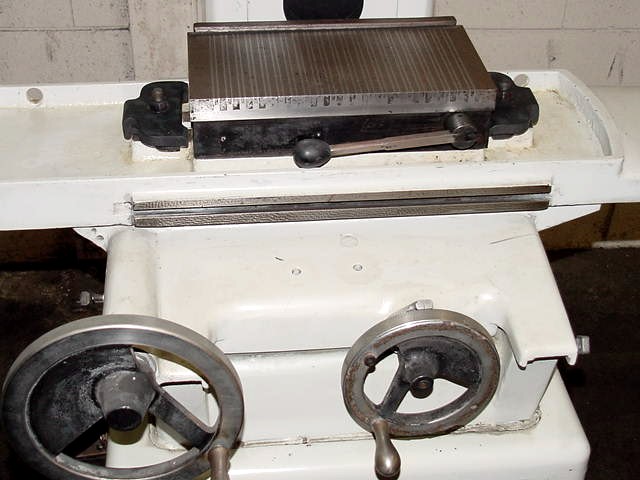

6" X 12" FINE-DIVISION PERMANENT MAGNETIC CHUCK
TEFLON WAYS
RACK & PINION FOR TABLE MOVEMENT
*** CLEANED, PAINTED, CYCLED - "READY TO GO" **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
