Reference Number: 126396

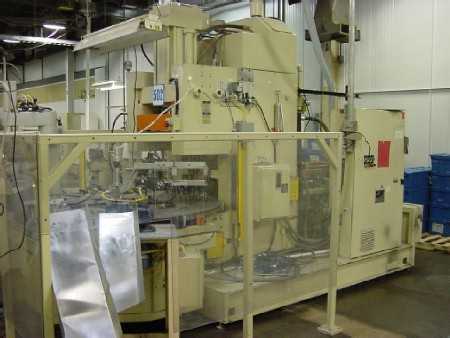

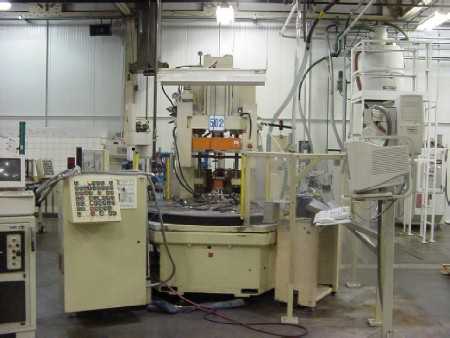

150 TON, 6.67 OZ. AUTOJECTOR VERTICAL ROTARY PRESSPrice: On Request
MODEL: HCR-150 NEW: 1995
SPECIFICATIONS:
MOLD CLAMPING FORCE................. 150 TON
SHOT SIZE........................... 6.67 OZ.
UPPER PLATEN SIZE................... 16" X 20"
LOWER PLATEN SIZE................... 16" X 20"
MOLD HEIGHT (MIN/MAX)............... 10" TO 13.75" ADJ.
MAX. CLAMP STROKE................... 15"
MAX. DAYLIGHT....................... 24"
MAXIMUM EJECTION STROKE............. 4"
INJECTION STROKE.................... 5"
BARREL HEAT......................... 4 ZONES
MOTOR............................... 25 HP
DIMENSIONS.......................... 117'L X 118"W X 112"H
WEIGHT.............................. 22,000 LBS
EQUIPPED WITH:
-73" ROTARY TABLE (4-STATION)
-WORKING HEIGHT OF 38.5" FROM THE FLOOR
C-FRAME DESIGN-HYRAULIC CLAMP
-6.67 OZ. INJECTION UNIT
-WATER MANIFOLDS FOR TOP AND BOTTOM MOLD HALVES
-AUDIBLE AND VISUAL ALARMS FOR MACHINE
-480 VOLTS
