Reference Number: 126424

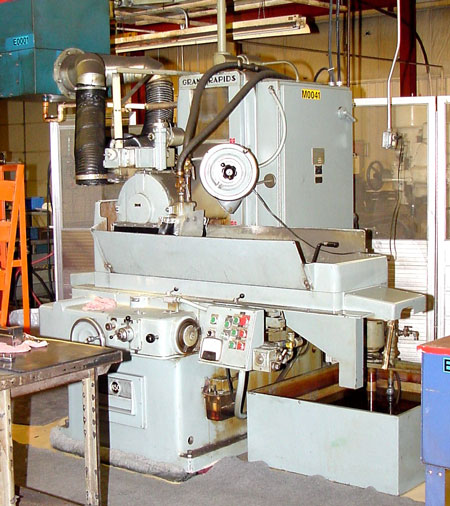

12" X 24" GALLMEYER & LIVINGSTON "GRAND RAPIDS"Price: On Request
PRECISION "HEAVY DUTY" HYDRAULIC SURFACE GRINDER
*** STD. TABLE SPEEDS & SLOW TABLE SPEED OPTION
FOR "CREEP FEED" GRINDING **
**** 4" WIDE GRINDING WHEEL ON A 12" X 24" GRINDER!! ***
MODEL: 450 S/N: 450183 NEW: 1980
HYDRAULIC TABLE TRAVEL, LONGITUDINAL .......... 35-1/2"
HYDRAULIC TABLE TRAVEL, CROSS .................. 13-3/4"
WORKING SURFACE OF TABLE ..................... 12" X 24"
WHEEL SIZE ............................... 14" X 4" X 5"
LONGITUDINAL TABLE SPEEDS ............... 3" - 150" IPM
AUTO CROSS FEED TO TABLE PER STROKE ..... 0.01" TO 1/2"
CONTINUOUS CROSS SPEED ....................... 120" IPM
VERTICAL MOVEMENT OF WHEELHEAD .................... 19"
MAXIMUM DISTANCE FROM WHEEL TO TABLE (14" WHEEL) .. 18"
APPROXIMATE FLOOR SPACE ................... 124"W X 80"D
APPROXIMATE WEIGHT .......................... 9,000 LBS
EQUIPPED WITH:
HYDRAULIC LONGITUDINAL AND CROSS FEEDS
-STANDARD TABLE SPEEDS AS WELL AS THE FOLLWING OPTION:
-SPECIAL OPTION "AUXILIARY TABLE SLOW SPEED VALVE"
("CREEP FEED")WITH TWO FUNCTIONS; (1) TO PROVIDED SLOW
GRINDING SPEED WHEN TABLE MOVES FROM RIGHT TO LEFT
AND (2) TO PROVIDE A RAPID SPEED IN THE RETURN DIRECTION.
THE ON/OFF LEVER WILL ELIMINATE THE SLOW SPEED FEATURE
WHEN NOT NEEDED.
AUTO TABLE LOAD POSITION
POWER ELEVATION
SADDLE LOCK (STD.) & (R.H.)
SPINDLE LOAD METER
LARGE COOLANT SYSTEM (100 GAL.) W/TANK/PUMP/SPLASH GUARDS
SEVERAL EXTRA WHEEL MOUNTS W/EXTRA WHEELS
HYDRAULIC OVER-THE-WHEEL DRESSER (TYPE 4H) FOR 4"W WHEELS
AUTO WHEEL COMPENSATION
SELF-CONTAINED HYDRAULIC SYSTEM MOTOR
10 HP 3/60/230-460 VOLT SPINDLE DRIVE
MACHINE IS PRESENTLY WIRED FOR 3/60/460 VOLTS

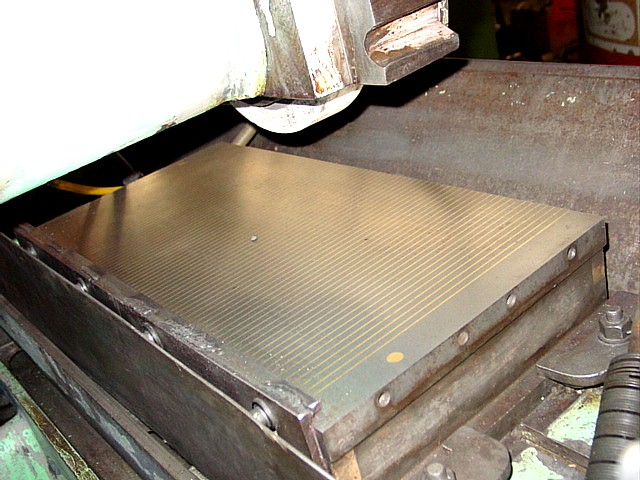

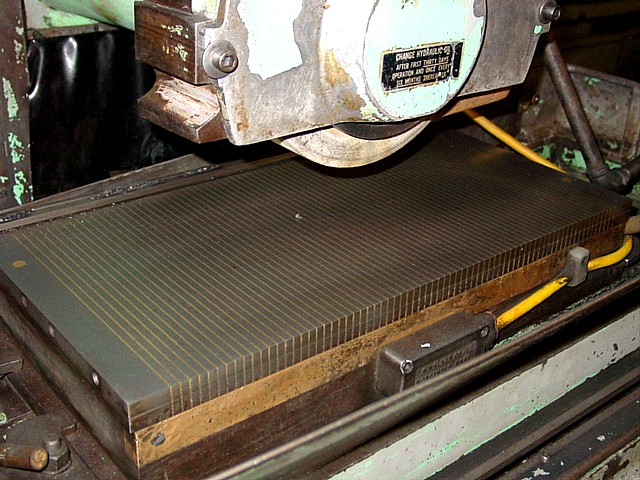

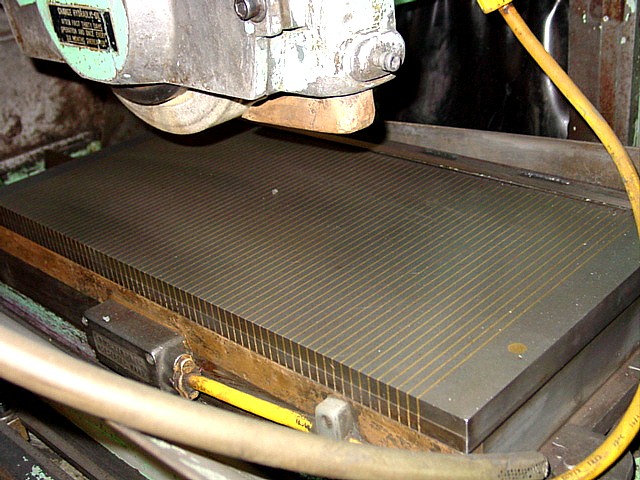

12" X 24" "ELECTRO-MATIC" FINE-DIVISION LONGITUDINAL BAR
POLE ELECTRO-MAGNETIC CHUCK & "ELECTRO-MATIC"

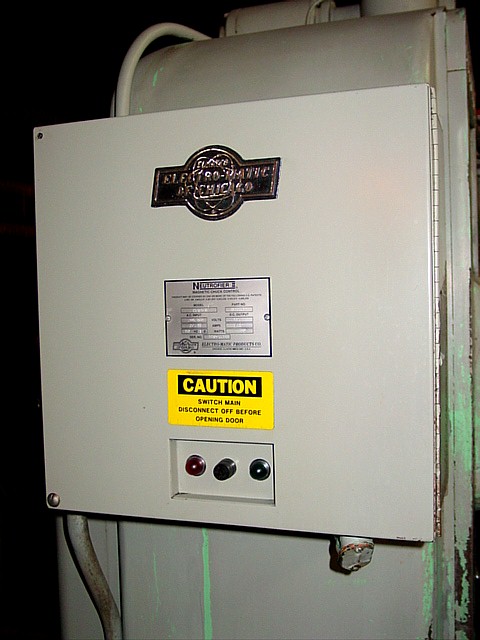

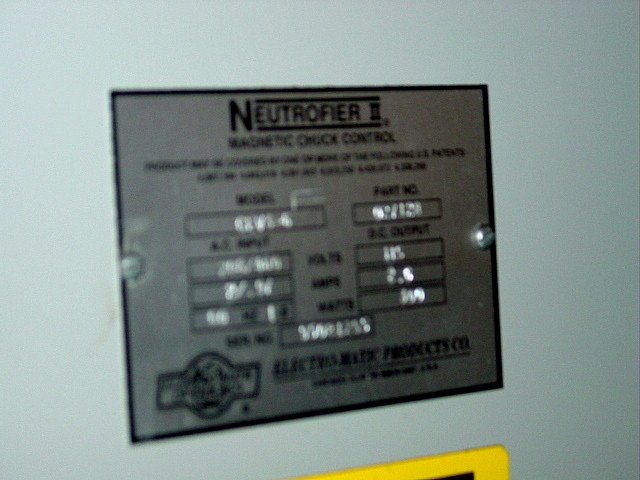

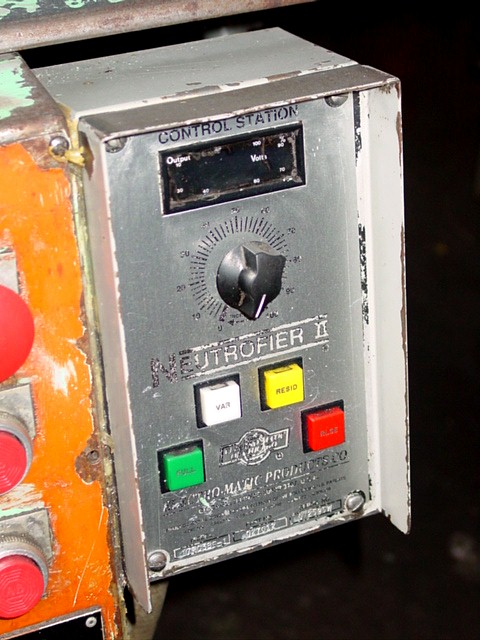

NEUTROFIER II" VARIABLE HOLD NEUTROFIER CONTROL
*** EXCEPTIONAL CONDITION - ORIGINAL PAINT ***
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
