Reference Number: 128205

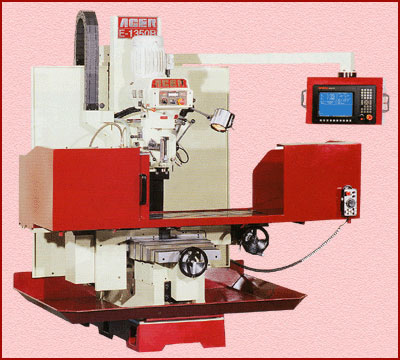

"NEW" SUPRA CNC Bed-Mill 1350 THE ACER E-MILL BEDTYPE
MILLING MACHINE W/ ANILAM 3000M/5000M-3 AXIS CNC CONTROL

HIGH EFFICIENCY * PRODUCTIVITY * USER-FRIENDLY

************************************************************

THE PACKAGE INCLUDES:

ACER E-milll Bedtype Milling Machine
ANILAM 3000M 3-Axis or ANLAM 5000M 3-Axis CNC Control
Auto Lube System
C5 Ball Screws and Bearings
Built-in Coolant System
Halogen Light
Full Length Splash Guard & Chip Pan


ULTRA HIGH QUALITY ACER E-MILL MILLING MACHINE:

5 HP "Super E" Baldor Motor
Infinite 50 ~ 3,750 RPM Speed AC Frequency Drive
HRC 52° Hardened and Ground Table
Turcite-B Coated Slide-way and Gibs
Precision Spindle w/ ABEC-7 Bearing
Meehanite Casting
Automotive Painting
Rugged 13" x 50" Table Size
1-1/4" Diameter Ball Screws with Casted Mounting Brackets
Hardened & Ground X, Y, & Z Table Top and Bottom to HRC 52°
XYZ Travel:  32" x 19" x 23"
N.S.T. #40 Taper
Class 7 Precision Spindle Bearing
Precision 4" Diameter Hard Chromed Quill at HRC 62°
Turcite-B Lining Saddle Ways to Reduce Metal Wear
Max. Load on Table: 1,700 lbs.
Machine Weight: 7,040 lbs.

3000M-3Axis CONTROL SOFTWARE FEATURES:

3 Axis Contouring
Tools Library
Drilling (single, line angle array & grid)
Bolt Circle Drilling (complete & incomplete)
Line / Arc Milling (calculation of unknown points)
Line / Arc Milling (polar & X-Y lines, arc, corner radius)
Pocket Milling (circular, rectangular, & irregular)
Frame Milling (circular & rectangular)
Communicate with CAD-CAM software system
Special Features (repeat, rotate & mirror)
And MUCH MUCH MORE

* 5000M-3 Axis Controls for Both Conversational & G-Code
Programming

OPTIONAL ACCESSORIES:

1. Programmable RPM for 3-Axis Control..............$500.00
2. Remote Manual Pulse Generator....................$750.00
3. Remote Start/Stop Switch.........................$250.00
4. Bob CAD-CAM Software w/ Book.....................$595.00
5. Home Position Switch for Home & Fixture Offset...$200.00
6. Torque-Rite Automatic Air Power Draw Bar.........$600.00
7. 6" Milling Vise..................................$405.00
8. 12" Rotary Table (Vertical & horizontal).........$725.00
9. T-Slot Cover.....................................$ 40.00
10. Full Length Splash Guard........................$700.00
11. One Day On-Site Training........................$800.00


PRICE:
SUPRA CNC-BEDMill w/3-Axis ANILAM 3000M Control:

BED E-mill 1350 w/ 3000M 3-Axis Control (13" x 50")$28,900.00

SUPRA CNC-BEDMill w/3-Axis ANILAM 5000M Control:

BED E-mill 1350 w/ 5000M 3-Axis Control  (13" x 50")$30,200.00

***FOR 4th AXIS (5000M) Please ADD $ 3,500.00 from 3000M-3
Axis Price***

*** Above Prices are based on F.O.B. Aaheim , CA.
*** Prices and designs are subject to change without notice.
*** Manufacturer reserves the right to modify the design
without notice.
