Reference Number: 128235

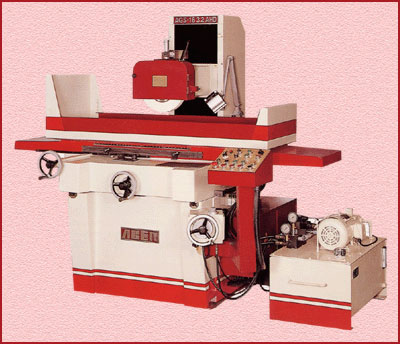

Price: $34,950"NEW" ACER PRECISION SURFACE GRINDER
MODEL: AGS-1632AHD - 3 Axis Automatic
FEATURES:
Fully ribbed column ensures the highest rigidity.
Overhead parallel dresser.
Spindle run-out within 0.0001".
Cartridge type spindle with four class 7 high precision
angular contact ball bearings.
Complete splash guard.
Longitudinal push-in handwheel.
Bearing type directional control arm.
Double-V Turcite-B laminated saddle ways.
Ball screw on crossfeed.
Weigh in at impressive 6,160 lbs.
Crossfeed driven by AC motor and timing belt.
Auto downfeed system increment from 0.0001" to 0.001".
Levelling bolts and pads.
Upper limit indicator.
Rapid elevation is standard.
Insert type coolant nozzle.
Halogen work light.
Electromagnetic chuck with demagnetizer.
Safety 24 volt control circuit.
Turcite-B lined one V & one flat table way.
Dual hydraulic pump system: one each for auto incremental
downfeed & table longitudinal travel.
Enlarged hydraulic tank to cut down thermal effect on
hydraulic oil viscosity.
Separate electrical power cabinet; easy maintenance design.
SPECIFICATIONS:
Working Surface of Table (W x L): 16" x 32"
T-Slot: 1" x 9/16"
Max. Grinding (W x L): 16" x 32"
Max Table Travel: 33-1/16"
Max. Crossfeed Travel: 18"
Distance Between Table Surface & Spindle Center: 25"
Grinding Wheel: 14"x2"x5"
Vertical Graduation: 0.00025"
Vertical Revolution: 0.05"
Wheel Speed: 1,750 RPM
Table Speed: 16 - 80 ft./min.
Spindle Motor: 7.5 HP (V3)
Net Weight: 6,160 lbs.
Auto. Increment Downfeed: Variable 10 step (0.0001"-0.001")
STANDARD ACCESSORIES:
1 pc. Wheel Balancing Base 1 pc. Wheel Balancing Arbor
1 pc. Grinding Wheel 1 pc. Wheel Flange
1 pc. Diamond Dresser 1 pc. Halogen Light
1 set Tool Box w/Tools 1 set Splash Guard
PRICE INCLUDES:
Coolant System w/Magnetic Separator & Paper Filter
Parallel Dresser
16"x32" Electro-Magnetic Chuck
Variable Chuck Control Master
OPTIONAL ACCESSORIES: (CALL FOR PRICES):
Walker 16"x32" Electric LBP Chuck w/Control (Fine Pole)
Extra Wheel Flanges
Newall 2-Axis D.R.O. (20"x30" Travel, 0.0001" Resolution)
Sony 2-Axis D.R.O. (20"x30" Travel, 0.00002" Resolution)
