Reference Number: 129516

4 Cubic Foot "Automated Finishing" 2-Spindle Finishing Machine
 Model:  AFI-2H36  S/N: 1731  New: 1986

 The Automated Finishing Spindle Machine is designed to
 rapidly remove burrs and surface finish a wide variety
 of parts.  Items especially suited for use in the Spindle
 Machine are those that are symmetric such as gears, shafts,
 pulleys and rotors.  An abrasive media is rotated at
 varying speeds in a steel tub to act against a submerged
 part held in place by a spindle.  To assure a uniform
 finish on all areas of the part, the spindle is rotated
 within the rotating media.  There are two spindles on
 the machine, each of which can be adjusted and moved
 in a multitude of positions to enable the acceptance of
 a wide variety of parts.

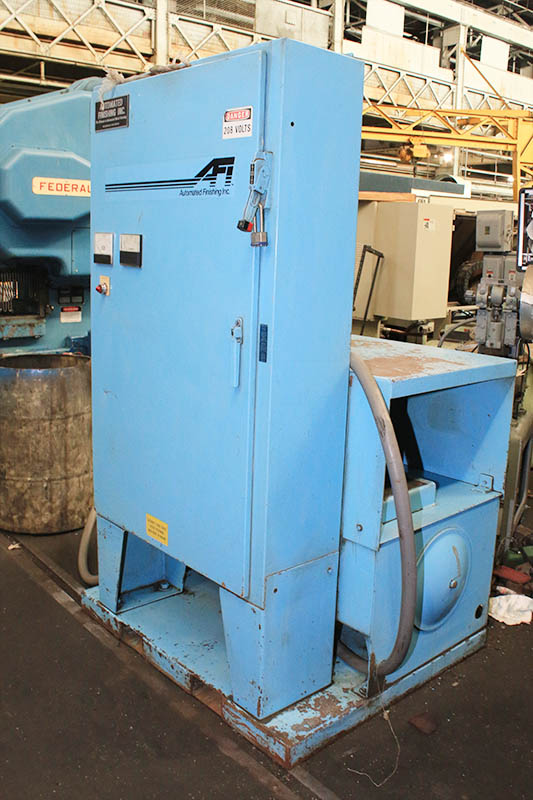

 The electrical control panel can dictate all machine
 operations except for manual adjustments on the spindle
 arm mechanisms. Process timers for full and half
 cycles can tailor the part finishing to specific
 requirements.  While in the auto mode, the machine will
 run a complete cycle with out any operator assistance
 except for loading and unloading the part.

 Driving the machine tub is a bidirectional hydraulic
 motor mounted to the lower frame section.  By turning
 the hand knob on the flow control valve, located on the
 backside of the tub housing, the speed can vary from 32
 to 128 RPM which is equivalent to 300 t0 1200 surface
 feet per minute (S.F.M.).

 EQUIPPED WITH:
 OPERATOR CONTROL CONSOLE
 COMPOUND SOLUTION CONTROL SYSTEM
 INTERNAL SPRAY RINSE UNIT
 15 H.P./3/60/230-460 VOLT PUMP MOTOR
 CAN BE USED WITH STEEL MEDIA (260LBS. TO 320LBS. PER
  CUBIC FT.)

 SPECIAL NOTE:
 AUTOMATED FINISHING INC. IS LOCATED IN WI (262) 252-4646.

 ** INSPECT IN OUR HARRISON, N.J. WAREHOUSE **
 ** EXCELLENT CONDITION & APPEARANCE **
