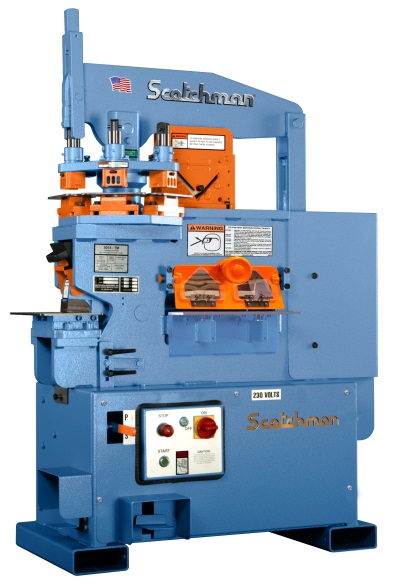

  SCOTCHMAN IRONWORKER, MODEL: 5014-TM

 STANDARD FEATURES:
 -PUNCH CAPACITY 50 TONS
 -KEYED PUNCH RAM FOR SAFETY
 -3 STATION REVOLVING TURRET
 -4" THROAT DEPTH
 -ANGLE SHEAR CAPACITY
  3" X 3" X 5/16" AND 2" X 2" X 1/4" AT 45 DEGREES
 -BAR SHEAR CAPACITY 14" BLADES COMPLETE WITH 4 CUTTING EDGES
 -BUILT IN NOTCHER, 2-1/2" X 3" X 5/16"
 -TOOL TABLE WORK AREA FOR MOUNTING OPTIONAL TOOLING
 -THREE 2" DIE HOLDERS, THREE JAM NUTS AND THREE STRIPPERS
 -JAM NUT WRENCH
 -ADJUSTABLE STROKE CONTROLS
 -ELECTRICAL BOX SUPPLIED WITH EMERGENCY PALM BUTTON AND LOCK-OUT TAG-OUT ACCOMMODATIONS
 -230/460 VOLT 3 PHASE ELECTRICS (MUST SPECIFY VOLTAGE)
 -ALL GUARDS NECESSARY TO COMPLY WITH ANSI B 11-5 STANDARDS
 -FORK LIFT ACCOMMODATIONS
 -ONE YEAR WARRANTY

 CAPACITIES & SPECIFICATIONS RATED ON 65,000 PSI TENSILE, A 36 MILD STEEL:
 THROAT DEPTH........................ 4"
 PUNCHING CAPACITY................... 50 TON
                                     1-1/4" IN 1/2"
                                     13/16" IN 3/4"
 SPECIAL TOOLING..................... 2-1/4" MAX. DIA.
 FLAT BAR SHEER...................... 14" LENGTH
                                     3/8" x 8"
                                     1/4" x 10"
                                     3/16" x 14"
 OPT. SOBER BLADE.................... 1/2" X 8"
                                     3/8" x 12"
                                     1/4" x 14"
 ANGLE SHEAR 90...................... 3" X 3" X 5/16"
 ANGLE SHEAR 45...................... 2" X 2" X 1/4"
 STROKES PER MINUTE:
 LT. MATERIAL........................ 1/4" STROKE
 HEAVY MATERIAL...................... 3/4" STROKE
 TUBE SHEAR.......................... 1/2" TP 1", 16 GA.
 PICKETT TOOL........................ 1/2", 3/4", 1"
 ROD/ANGLE SHEAR COMBO............... 2" X 2" X 1/4"
 ROUND............................... 3/4" MAX.
 SQUARE.............................. 3/4" MAX.
 90V NOTCHING........................ 6' X 6" X 1/8"
 RECTANGLE NOTCHER................... 2-1/2" x 3" x 5/16"
 PIPE NOTCHING................. 3/4", 1", 1-1/4", 1-1/2", 2"
 BRAKE 8"...................... 24 TON
 BRAKE 12"..................... 24 TON
 HYDRAULICS.................... 1900 PSI
 MOTORS:
 STANDARD...................... 230/460 3 HP 3 PH
                               200/208/350/380
                               400/415/550/575
 OPTIONAL...................... 5 HP 230v 1 PH (add $345)
 DIMENSIONS.................... W-24" L-60" H-66"
 WEIGHT........................ 2,750 LBS
