Reference Number: 131642

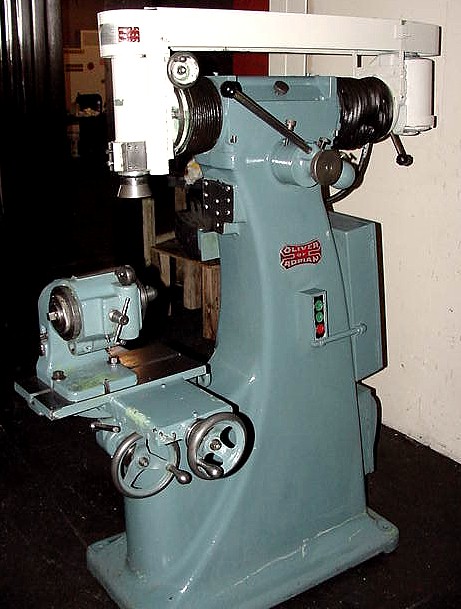

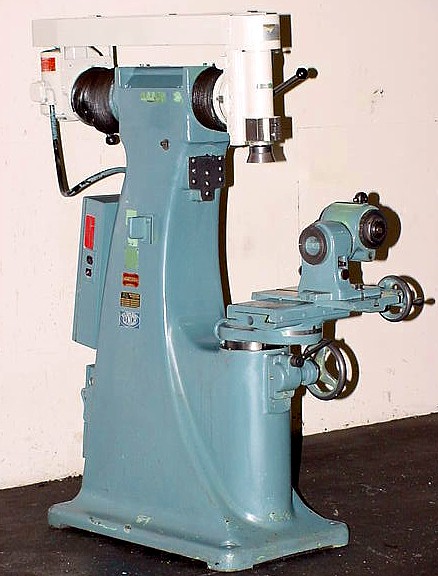

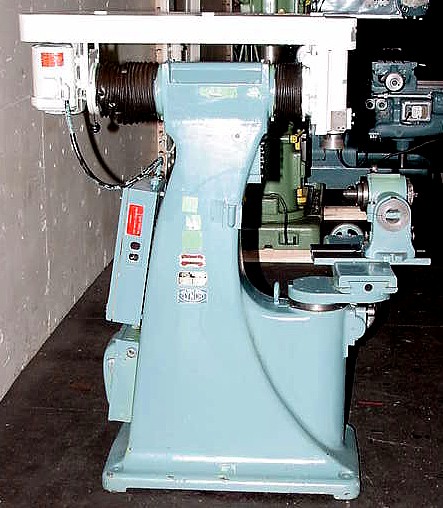

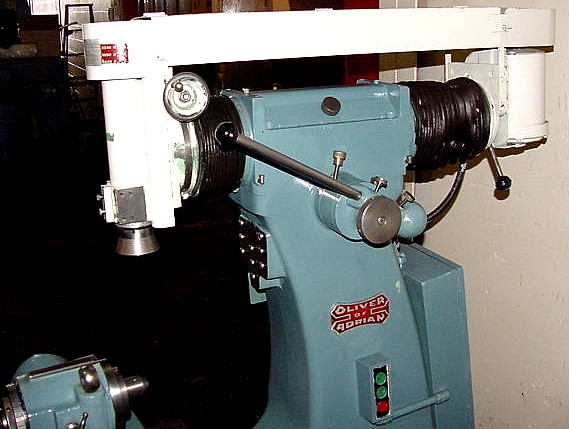

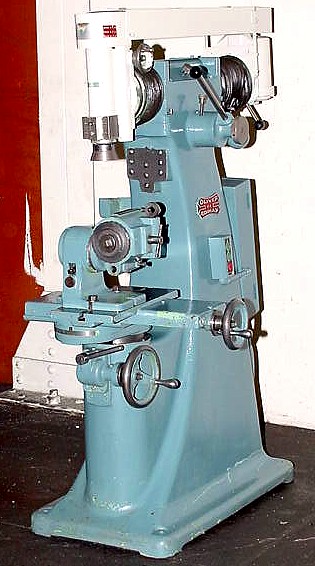

OLIVER "ACE" TOOL & CUTTER GRINDER

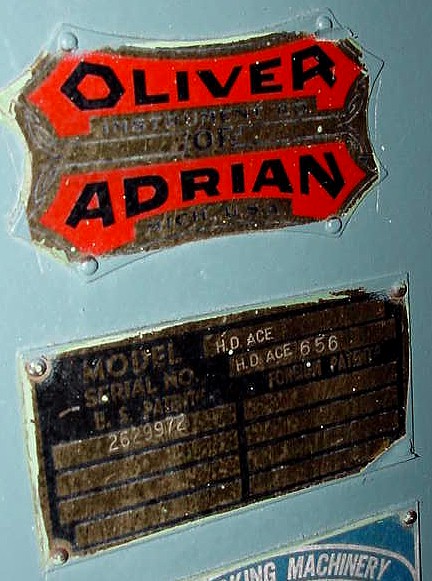

 MODEL: 300HD, S/N:656

 MACHINES ARE SUITABLE FOR USE IN GRINDING SUCH TOOLS AS FACE
 MILLS, SLITTING SAWS, END MILLS, ANGULAR CUTTERS, DOVETAIL
 CUTTERS, SLAB MILLS, SPOT FACERS, COUNTERBORES, SIDE MILLS,
  FORMED CUTTERS, STRAIGHT & SPIRAL FLUTE REAMERS, BRIDGE
  REAMERS, GEAR CUTTERS, DOUBLE ANGLE CUTTERS, HELICAL
 CUTTERS, CARBIDE TIPPED CIRCULAR SAWS, ETC.

 SPECIFICATIONS:
 MAX. DISTANCE BETWEEN CENTERS:                 15"
 SWING OF CENTERS:                              8"
 CROSS CARRIAGE TRAVEL - STANDARD:              9"
 CROSS CARRIAGE TRAVEL WHEN ORDERED
  FOR SAW GRINDING:                            14"
 ANGULAR ADJUSTMENT OF CARRIAGE:                180 DEGREES
 ANGULAR ADJUSTMENT OF TABLE IN VERTICAL PLANE: 45 DEGREES
 MAXIMUM DISTANCE BETWEEN GRINDING
  WHEEL & TILTING TABLE:                       7-3/4"
 MAXIMUM DISTANCE BETWEEN GRINDING
  WHEEL & BASE TABLE:                          16-3/4"
 MAXIMUM HORIZONTAL TRAVEL OF GRINDING UNIT:    7"

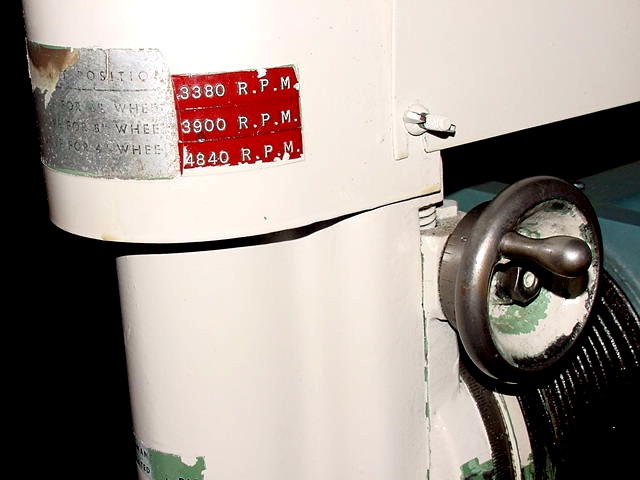

 R.P.M. OF GRINDING WHEEL SPINDLE:              4800,3800,3200
 VERTICAL ADJUSTMENT OF BASE TABLE:             12-1/2"
 VERTICAL ADJUSTMENT OF GRINDING WHEEL:         1-1/2"
 FLOOR SPACE:                                   3-1/2' X 6'
 APPROX. MACHINE WEIGHT:                        1,100 LBS.

 CURRENTL WIRED FOR 220 VOLTS

 EQUIPPED WITH:

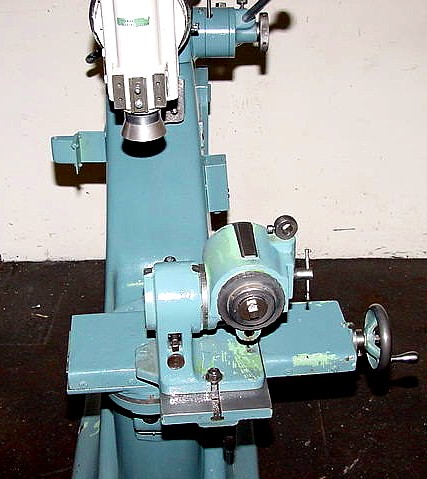

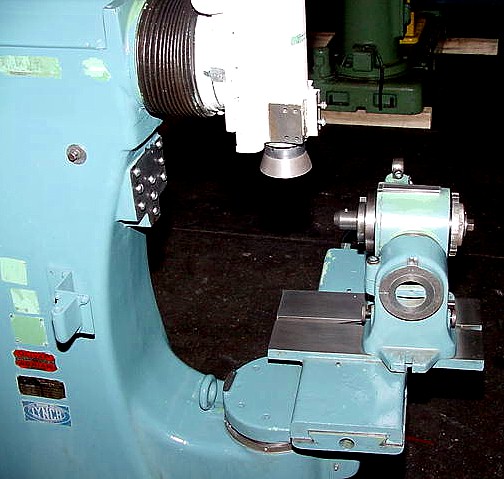

 WORKHEAD
 RAM RECIPROCATES ON BALLS RIDING ON SEVERAL HARDENED
  WAYS .... PROVIDES FRICTIONLESS MOVEMENT.
 TILTING SPINDLE

 ** EXCELLENT CONDITION & APPEARANCE **
 ** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
