Reference Number: 132973

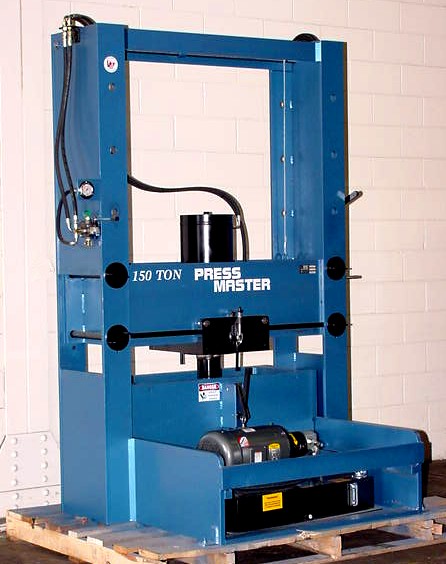

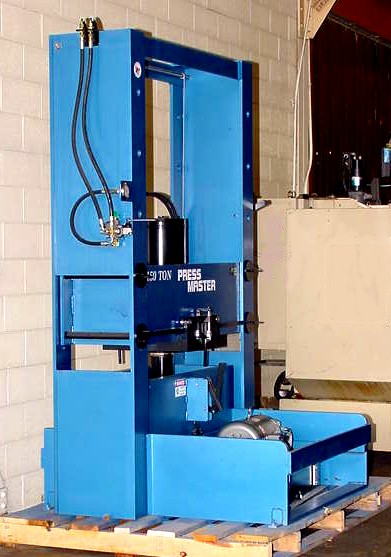

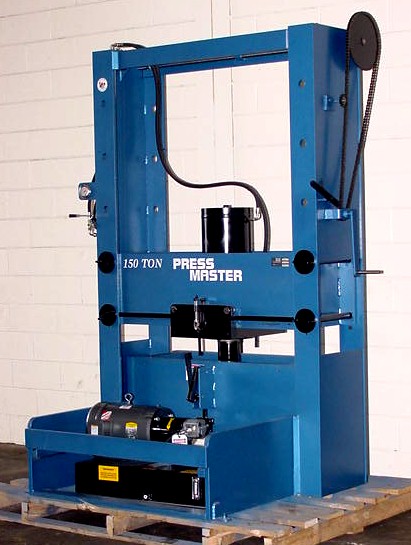

   150 TON PRESSMASTER ROLL-IN TABLE STRAIGHTENING PRESS
          NEW - IN STOCK FOR IMMEDIATE DELIVERY

 RATED CAPACITY .............................. 150 TONS
 WIDTH BETWEEN UPRIGHTS ...................... 48"
 DEPTH BETWEEN POSTS ........ ................ 16"
 MAXIMUM RAM TO TABLE ........................ 32"
 STROKE ... .................................. 16"
 TABLE TRAVEL ................................ 29"
 FLOOR TO TABLE TOP .......................... 26"
 CYLINDER BORE SIZE .......................... 10"
 PRESSING SPEED .............................. 12 INCH/MIN
 RETURN SPEED ................................ 16 INCH/MIN

 BASE ........................................ 52" X 54"
 HEIGHT ...................................... 86"
 WEIGHT ...................................... 3,200 LBS.

 MOTOR SPECS: 10 HP, 230/460 VOLT, THREE PHASE
             (OTHER VOLTAGES AVAILBALE)

 STANDARD FEATURES:
 -ELECTRIC/HYDRAULIC OPERATION PROVIDES SMOOTH, CONSISTENT
 PRESSING ACTION.

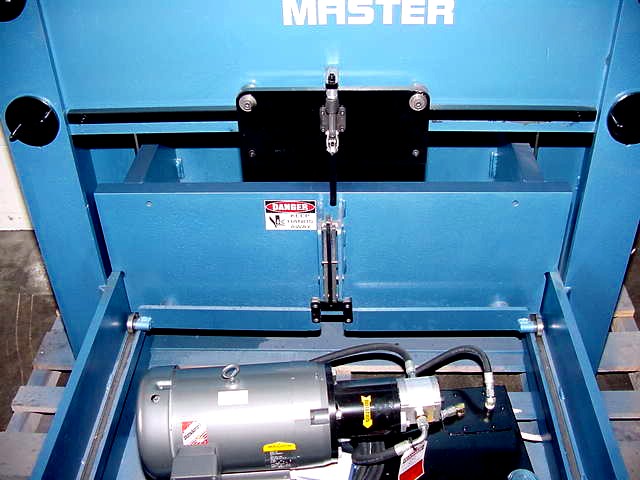

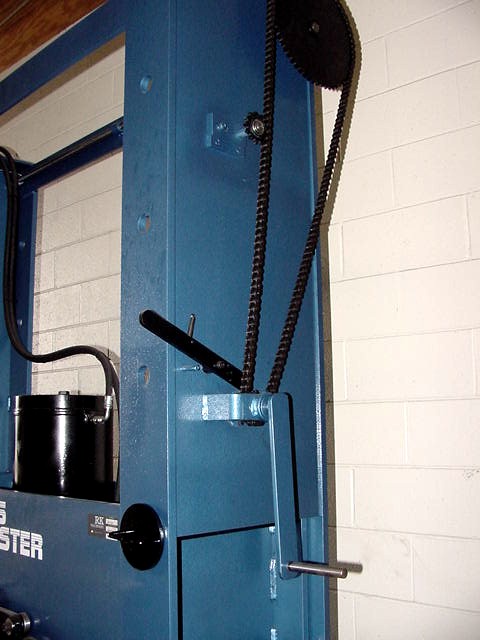

 -MOVEABLE TABLE ALLOWS FOR EASY LOADING AND UNLOADING OF
 HEAVY WORKPIECES.

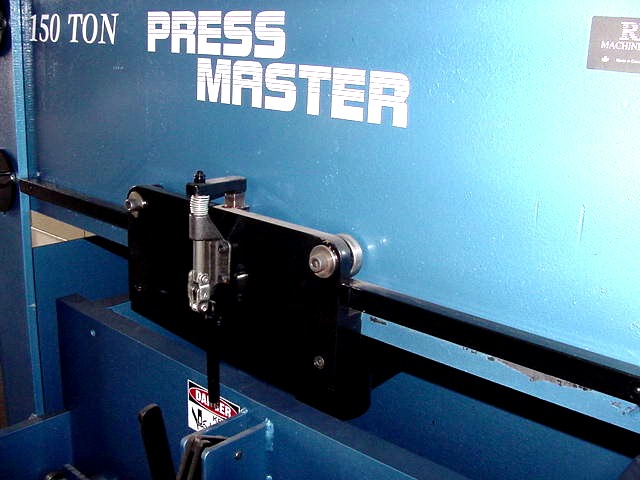

 -MOVEABLE WORKHEAD FOR OFF-CENTER WORK.
 -OPEN SIDES TO FACILLITATE WORK ON LONG PIECES.

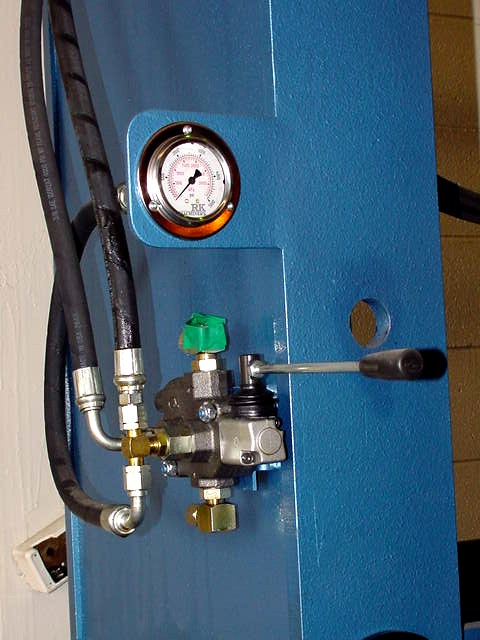

 -PANEL MOUNTED GLYCERINE FILLED GAUGE.
 -SAFETY VALVE PROTECTS AGAINST OVERLOADS.
 -FLAT RAM NOSE CAN BE EASILY CHANGED TO ALLOW THE USER TO
 ADAPT THE PRESS TO A SPECIFIC JOB.
 -LOW SPEED. QUIET OPERATION.
 -CYLINDER HARD CHROME SHAFT CERTIFIED ISO-9002.

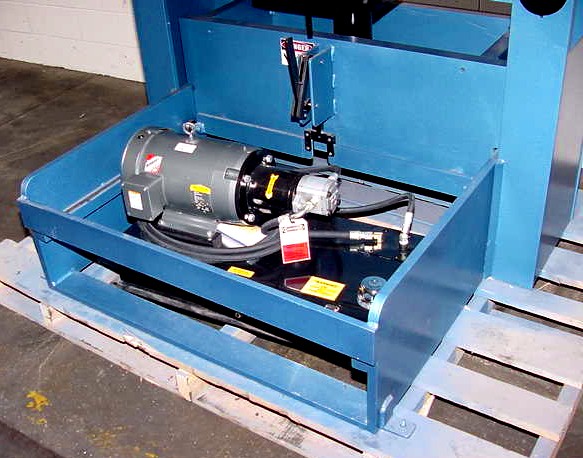

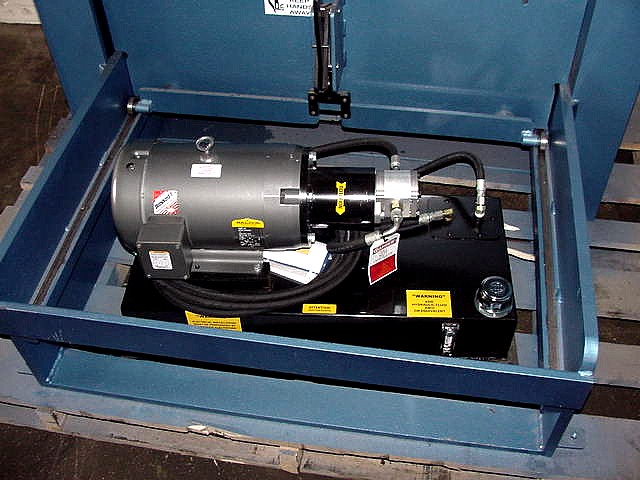

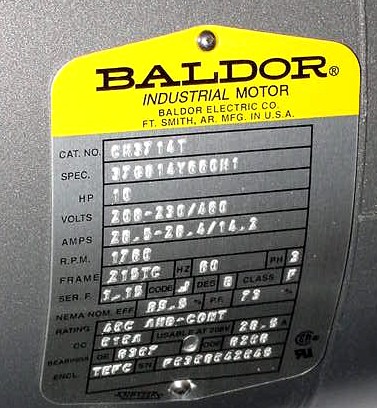

 -QUALITY BALDOR MOTOR TOTALLY ENCLOSED FAN COOLED, LOW SPEED.

 OPTIONS AVAILABLE:
 -FC: FLOW CONTROL TO MATCH RAM SPEED TO JOB..........$300
 -PR: PRESSURE REGULATOR TO CONTROL THE AMOUNT OF PRESSURE
 REQUIRED............................................ $300
 -FPS: FOOT PEDAL-ELECTRIC SOLENOID VALVE FOR HANDS-FREE
 OPERATION, COMPLETE WITH PRESSURE REGULATOR......... $1,600
 -ASC: ADJUSTABLE STROKE CONTROL C/W FOOT PEDAL-ELECTRIC
 SOLENOID VALVE AND PRESSURE REGULATOR............... $2,000
